01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts

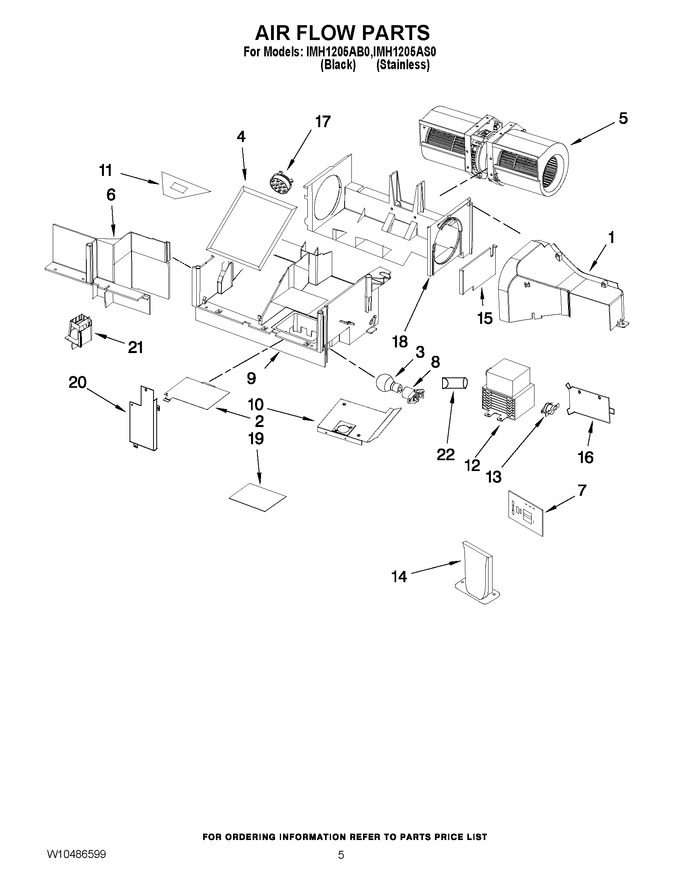

04 - Air Flow Parts
05 - Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10245181 | Deflector, Air |
|
- | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 8.74 | |||||
| 3 | 8206232A | Lamp (Replaces: 4393681) |
|
Immediately | $ 7.34 | ||||
| 4 | 8206230A | Filter, Charcoal (Replaces: 8206230) |
|
Immediately | $ 19.25 | ||||
| 5 | W10440507 | Motor, Fan Assy |
|
$ 172.69 | |||||
| 6 | W10245210 | Air Guide |
|
- | |||||
| 7 | W10422269 | Filter |
|
Immediately | $ 32.18 | ||||
| 8 | WPW10210878 | Holder, Lamp (Replaces: W10210878) |
|
Immediately | $ 33.21 | ||||
| 9 | W10387590 | Base Plate, Air Guide |
|
- | |||||
| 10 | W10245179 | Sensor, Support |
|
$ 77.72 | |||||
| 11 | W10139750 | Socket, Motor Wire |
|
- | |||||
| 12 | W10245183 | Magnetron |
|
Immediately | $ 245.45 | ||||
| 13 | W10598693 | Thermostat (Replaces: 8206342) |
|
$ 62.15 | |||||
| 14 | W11381953 | Plate, Water Proof (Replaces: W10269467) |
|
- | |||||
| 15 | W10245182 | Cover, Right Duct |
|
- | |||||
| 16 | W10313274 | Bracket, Board |
|
$ 30.78 | |||||
| 17 | W10245178 | Sensor, Humidty |
|
$ 168.58 | |||||
| 18 | W10640885 | Holder (Replaces: W10245206) |
|
$ 74.35 | |||||
| 19 | W10245212 | Cavity Lamp Foil |
|
- | |||||
| 20 | W10245214 | Air Cavity Guide |
|
$ 34.36 | |||||
| 21 | W10441569 | Sealing Plate |
|
- | |||||
| 22 | 4393605 | Cover, Terminal Magnetron |
|
- |
