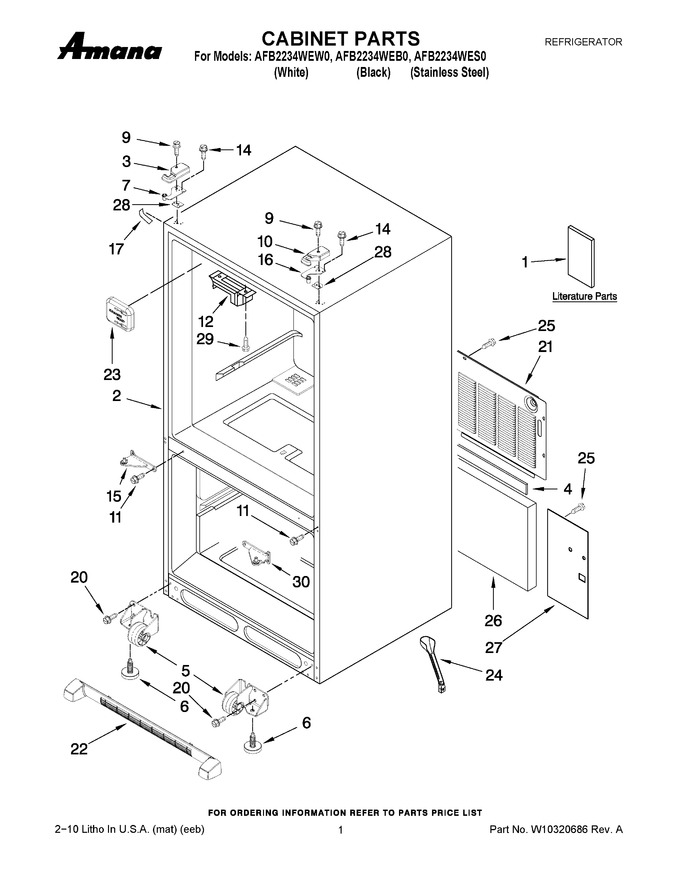

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10279337 | Tech Sheet |
|
- | |||||
| 1 | W10175445 | Use & Care Guide |
|
- | |||||
| 1 | W10260550 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WPW10337634 | Cover, Left Hinge (white) (Replaces: W10217491) |
|
Immediately | $ 22.42 | ||||
| 3 | W10337647 | Cover, Left Hinge (black) (Replaces: W10217489) |
|
Immediately | $ 22.22 | ||||
| 4 | B5759655 | Gasket |
|
$ 12.41 | |||||
| 5 | W11820445 | Roller Assembly (right) (Replaces: W10275849) |
|
Immediately | $ 35.57 | ||||
| 5 | W11820444 | Roller Assembly (left) (Replaces: W10275850) |
|
Immediately | $ 35.57 | ||||
| 6 | WPW10141622 | Foot Brake (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 7 | W11592375 | Hinge, Left Top (Replaces: 12963204ED) |
|
$ 29.09 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | 67005958 | Cover, Right Hinge (white) (Replaces: 12962302W) |
|
$ 20.54 | |||||
| 10 | WP67005956 | Cover, Right Hinge (black) (Replaces: 12962302B) |
|
$ 21.47 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.88 | ||||
| 12 | WP67003405 | Block, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.82 | ||||
| 14 | WP489349 | Screw (3) (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | W10918113 | Hinge, Center (lt) (white) (Replaces: 13000001WD) |
|
$ 93.26 | |||||
| 15 | W10918164 | Hinge, Center (lt) Black) (Replaces: 13000007ED) |
|
$ 86.64 | |||||
| 16 | W11592374 | Hinge, Right Top (Replaces: 12963205ED) |
|
Immediately | $ 29.02 | ||||
| 17 | 12587703W | Cover, Corner White |
|
$ 21.81 | |||||
| 17 | 67003485 | Cover, Corner (black ) (Replaces: 12587703B) |
|
Immediately | $ 21.09 | ||||
| 20 | 67006564 | Screw (4) (Replaces: 12991302) |
|
Immediately | $ 7.69 | ||||
| 21 | WPW10210979 | Cover, Unit (Replaces: W10210979) |
|
$ 196.41 | |||||
| 22 | WPW10534161 | Grille, Toe (white) (Replaces: W10236195) |
|
$ 140.09 | |||||
| 22 | WPW10534162 | Grille, Toe (black) (Replaces: W10236196) |
|
$ 141.10 | |||||
| 23 | WP67001098 | Cover-fill Tube (Replaces: 12477501) |
|
$ 8.03 | |||||
| 24 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 26 | 12820505 | Fiber, Acoustic |
|
$ 71.70 | |||||
| 27 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 20.34 | |||||
| 28 | 12999502 | Shim, Top Hinge (right) |
|
$ 95.81 | |||||
| 28 | 12999501 | Shim, Top Hinge (left) |
|
$ 94.79 | |||||
| 29 | WP7101P126-60 | Screw, Block (Replaces: 12990303) |
|
Immediately | $ 7.61 | ||||
| 30 | W10918164 | Hinge, Center (rt) Black (Replaces: 13000008ED) |
|
$ 86.64 | |||||
| 30 | 13000002WD | Hinge, Center (rt) (white) |
|
$ 153.32 |
