SELECT A DIAGRAM

01 - Door And Panel Parts

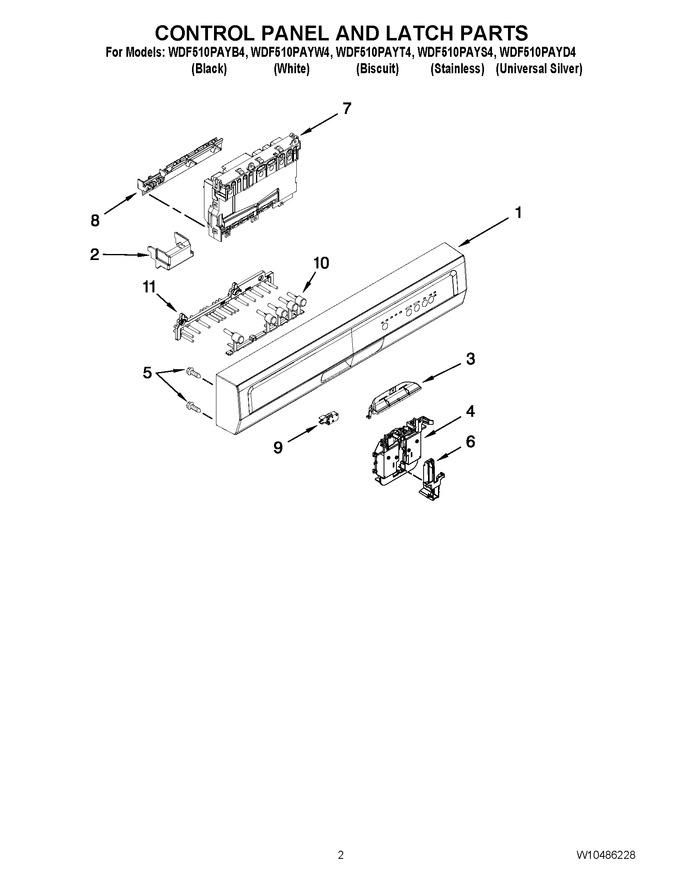

02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10380381		Console Asm. (black)   (Replaces: W10380306)				$ 118.74
1	W10380307		Console Asm. (white)		Appelez-nous	-
1	W10380383		Console Asm. (biscuit)   (Replaces: W10380308)		Appelez-nous	-
2	W10783730		Box, Connector   (Replaces: W10401190)				$ 31.41
3	W11684608		Handle, Latch (biscuit)   (Replaces: W10127606)				$ 8.59
3	W10127605		Handle, Latch (white)				$ 9.50
3	W11684608		Handle, Latch (black)   (Replaces: W10127604)				$ 8.59
4	WPW10274884		Bolt, Latch   (Replaces: W10274884)			Immediately	$ 86.34
5	WPW10348413		Screw   (Replaces: W10348413)			Immediately	$ 8.41
6	WP8524471		Actuator, Latch   (Replaces: 8524471)			Immediately	$ 101.28
7	W10804121		Control, Electronic   (Replaces: W10380315)				$ 116.60
8	WPW10372484		Brace, Connector   (Replaces: W10372484)				$ 23.37
9	WPW10274880		Door Switch   (Replaces: W10274880)			Immediately	$ 82.89
10	W10854044		Button Tree   (Replaces: W10350294)				$ 19.58
11	W10913666		Light Pipe   (Replaces: W10350295)				$ 13.70

    View Diagram in Separate Window       Print Part List
