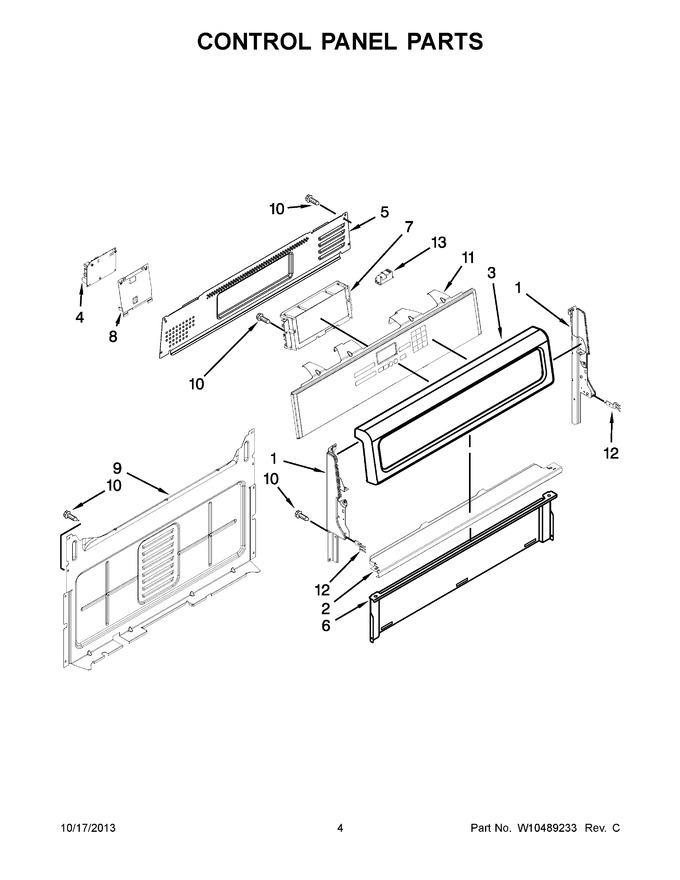

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white (left Hand))   (Replaces: W10184433)				$ 42.45
1	W11219664		Endcap Black (left Hand)   (Replaces: W10184437)				$ 153.83
1	W11219370		Endcap (white (right Hand))   (Replaces: W10184434)				$ 60.83
1	W11219665		Endcap Black (right Hand)   (Replaces: W10184438)				$ 45.17
2	W10525122		Bracket, Console Mounting				$ 40.06
3	WPW10318550		Console (stainless)   (Replaces: W10318550)				$ 273.23
3	WPW10318552		Console (white)   (Replaces: W10318552)			Immediately	$ 282.47
3	WPW10318551		Console (black)   (Replaces: W10318551)				$ 272.41
4	WPW10331686		Module, Spark   (Replaces: W10331686)			Immediately	$ 403.60
5	W10198745		Cover, Upper				$ 128.90
6	W10192841		Shield, Heat				$ 106.69
7	WPW10340313		Control, Mrc   (Replaces: W10340313)				$ 290.49
8	W10333917		Bracket, Mounting		Appelez-nous	-
9	W10184251		Cover, Back		Appelez-nous	-
10	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
11	W10678665		Assembly, Overlay (black)   (Replaces: W10347933)				$ 352.33
11	W10678664		Assembly, Overlay (white)   (Replaces: W10347932)				$ 336.28
12	8523412		Bracket, Rear Cooktop				$ 167.90
13	8522425		Module, Spark				$ 122.75
