Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10553363 Instructions, Installation Appelez-nous -
1 W10392928 Guide, Use And Care Appelez-nous -
1 W10348456 Tech Sheet Appelez-nous -
1 9762761 Tips, Safe Cooking (english) Appelez-nous -
1 W10400066 Guide, Quick Start (english) Appelez-nous -
2 WPW10183372 Set, Burner Cap (wetstone)   (Replaces: W10183372) Special Order $ 101.57

2 WPW10183374 Set, Burner Cap (black)   (Replaces: W10183374) Special Order $ 200.18

3 WPW10067840 Screw   (Replaces: W10067840) Special Order $ 8.30

4 WPW10406243 Burner Head, Auxiliary (6k) (right Rear)   (Replaces: W10406243) In-Stock Immediately $ 39.08

4 WPW10406283 Burner Head, Semi (9.5k) (left Rear And Center)   (Replaces: W10406283) Special Order $ 78.02

4 WPW10406878 Burner Head, Ultra Rapid (17.5k) (left Front & Right Front)   (Replaces: W10406878) Special Order $ 107.48

5 W10366730 Cooktop (black) Appelez-nous -
5 W10366729 Cooktop (white) Appelez-nous -
6 W10330066 Panel, Manifold (stainless) Special Order $ 259.37

6 W10444452 Panel, Manifold (white) Special Order $ 303.43

6 W10444453 Panel, Manifold (black) Appelez-nous -
7 W10766544 Knob (stainless (black Ice Model))   (Replaces: W10430807) In-Stock Immediately $ 44.10

7 WPW10467316 Knob (chrome (white Ice))   (Replaces: W10467316) Special Order $ 21.54

8 W10463861 Set, Burner Grate (wetstone (white Ice)) Special Order $ 142.25

8 W11394363 Set, Burner Grate (black)   (Replaces: W10447922) Special Order $ 369.06

9 WP3368921 Screw   (Replaces: 3400701) In-Stock Immediately $ 8.56

10 W10106419 Bracket, Manifold (right) Appelez-nous -
10 W10289096 Bracket, Manifold (left) Special Order $ 153.90

11 W10347384 Griddle Appelez-nous -
12 W11839019 Bracket, Anti-tip   (Replaces: W10306542) In-Stock Immediately $ 28.54

13 WP7101P485-60 Screw, Anti-tip   (Replaces: 7101P485-60) Special Order $ 30.72


    View Diagram in Separate Window     Print Icon   Print Part List

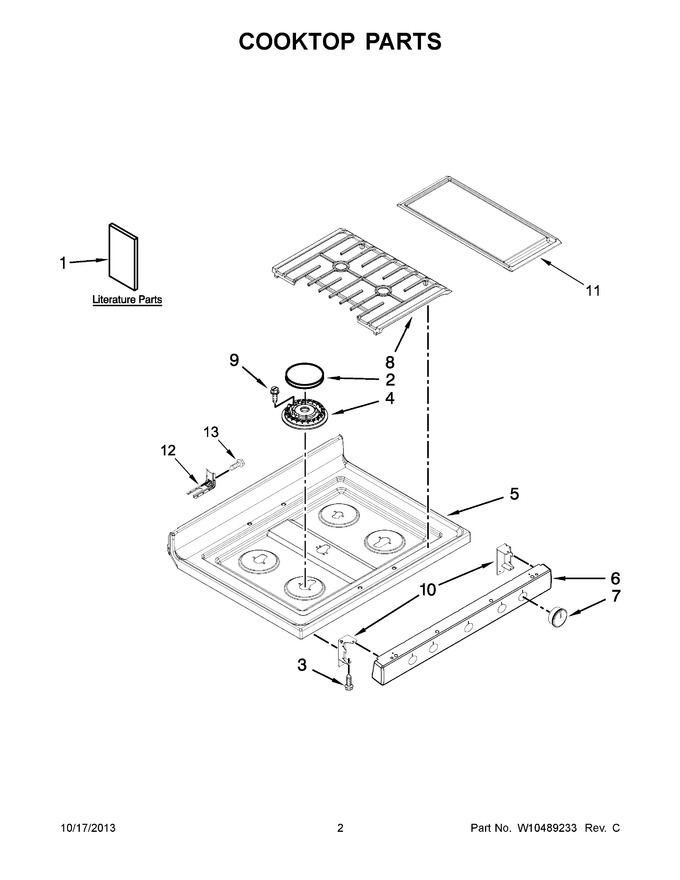

Diagram for WFG710H0AH0
