01 - Cooktop Parts

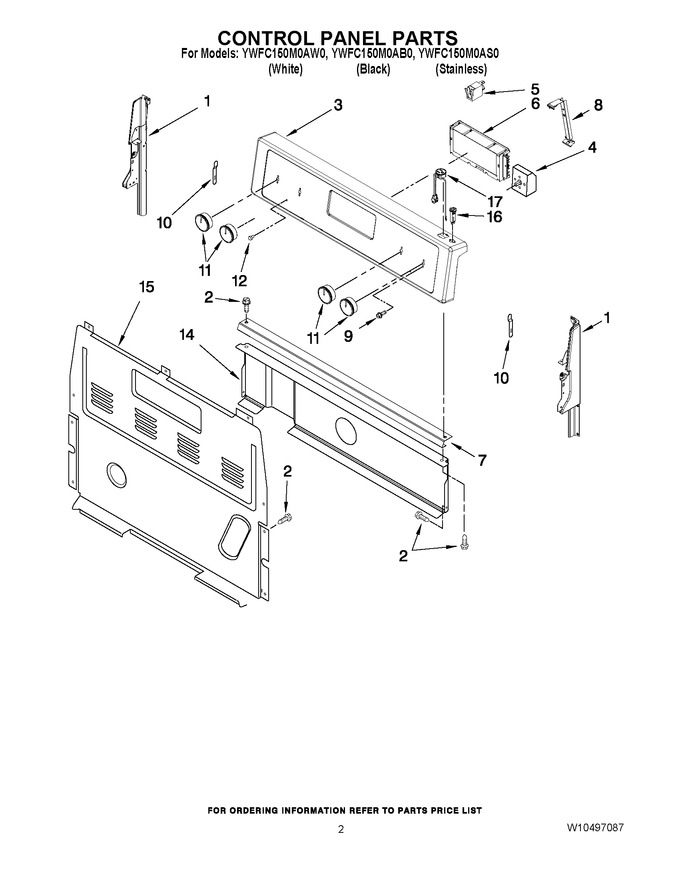

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 2 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 3 | W10339405 | Panel, Console (stainless) |
|
$ 84.08 | |||||
| 3 | W10333938 | Panel, Console (black) |
|
$ 51.36 | |||||
| 3 | W10333939 | Panel, Console (white) |
|
$ 69.01 | |||||
| 4 | 5500-287 | Switch, Infinite (use W/ 6`` Element) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | 5500-287 | Switch, Infinite (use W/ 8`` Element) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 5 | WP8523265 | Indicator, 125v (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | W11122560 | Control, Electric (lcc90) (stainless) (Replaces: W10424883) |
|
Immediately | $ 527.64 | ||||
| 6 | W11122555 | Control, Electric (lcc90) (black) (Replaces: W10348615) |
|
$ 502.99 | |||||
| 6 | W11122557 | Control, Electric (lcc90) (white) (Replaces: W10348616) |
|
Immediately | $ 502.99 | ||||
| 7 | W10525121 | Brkt-mntg, Console (Replaces: W10182322) |
|
$ 98.85 | |||||
| 8 | W11230932 | Bracket, Mounting (lcc) (Replaces: W10324410) |
|
Immediately | $ 84.81 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 10 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 11 | WPW10490037 | Knob (Replaces: W10490037) |
|
Immediately | $ 7.55 | ||||
| 12 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 14 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 15 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 16 | WP9757601 | Breaker, Circuit (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 16 | WP9757602 | Breaker-circuit (black/ss) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 17 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 80.79 | ||||
| 17 | W10861164 | Receptacle (black/ss) (Replaces: W10203475) |
|
Immediately | $ 18.47 |
