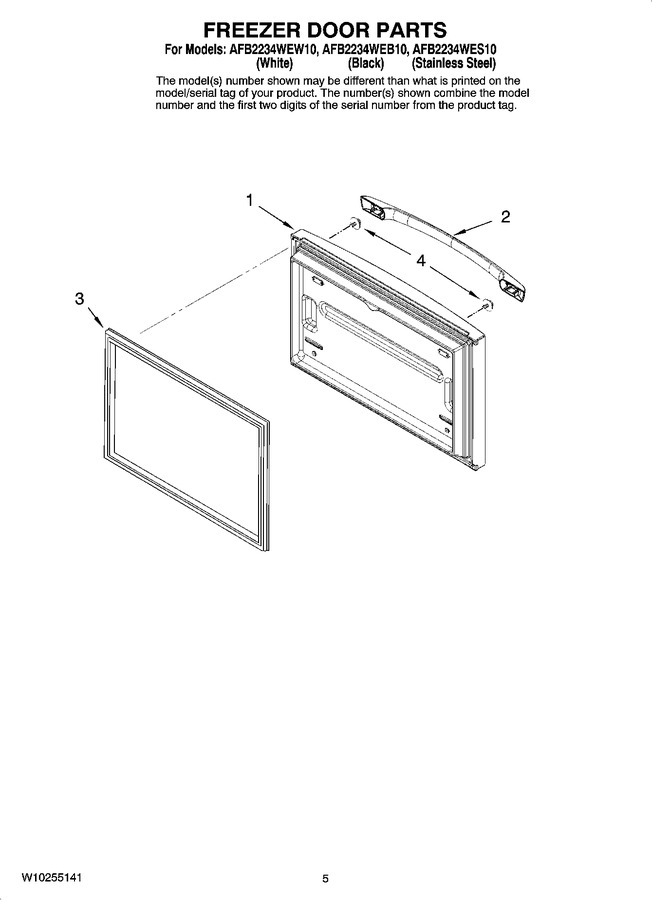

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977869WQ		Door, Freezer (white)   (Replaces: W10258324)				$ 1,021.67
1	W10258325		Door, Freezer (black)		Appelez-nous	-
1	12977824SQ		Door, Freezer (stainless Steel)		Appelez-nous	-
2	W10119669		Handle, Door (white)		Appelez-nous	-
2	W10119671		Handle, Door (black)		Appelez-nous	-
2	W10123790		Handle, Door (stainless Steel)				$ 133.18
3	W10443315		Gasket, Door (white)   (Replaces: W10164036)				$ 193.98
3	WPW10436250		Gasket, Door (black)   (Replaces: W10164037)			Immediately	$ 365.39
4	WP12992902		Screw, Handle   (Replaces: 12992902)				$ 11.91
