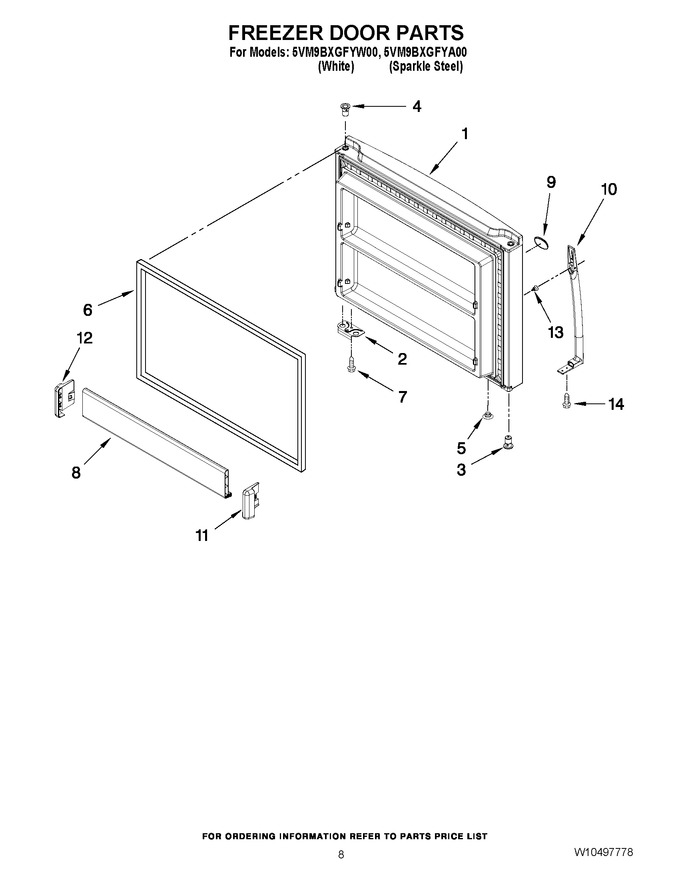

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10329576 | Freezer Door (includes Items 3, 4, 5 & 6) (white) |
|
- | |||||
| 1 | LW10462420 | Freezer Door (includes Items 3, 4, 5 & 6) (sparkle Steel) (Replaces: W10462420) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | W11189115 | Thimble (Replaces: W10334042) |
|
$ 12.71 | |||||
| 4 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 8.15 | |||||
| 5 | WP2254517 | Plug, Hinge (apollo Grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 5 | WP2212648 | Plug Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 6 | 2159327 | Door Gasket, Magnetic (mist Beige) (Replaces: 2214966) |
|
Immediately | $ 164.58 | ||||
| 6 | W11624958 | Door Gasket, Magnetic (apollo Grey) (Replaces: W10279559) |
|
$ 320.92 | |||||
| 7 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 8 | W10469910 | Trim Door Shelf (Replaces: W10308873) |
|
$ 164.72 | |||||
| 9 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 70.50 | ||||
| 10 | W10370624 | Handle (sparkle) |
|
$ 38.22 | |||||
| 10 | W10838896 | Handle (white) (Replaces: W10366329) |
|
$ 69.17 | |||||
| 11 | W10308871 | Endcap Trim Rs |
|
$ 10.44 | |||||
| 12 | W10338485 | Endcap Trim Ls |
|
$ 10.41 | |||||
| 13 | WPW10288153 | Mounting Screw (Replaces: W10129563) |
|
Immediately | $ 9.65 | ||||
| 14 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 |
