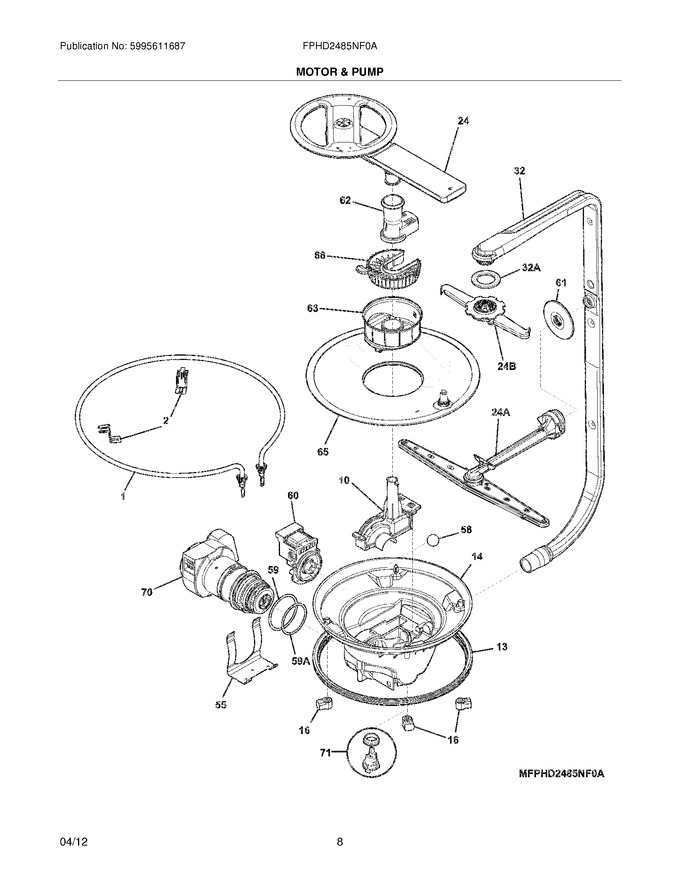

09 - Motor & Pump
11 - Frame
13 - Racks
14 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 154465101 | Bracket,heater ,(2) |
|
Immediately | $ 12.60 | ||||
| 10 | 154724001 | Cover,volute |
|
Immediately | $ 23.41 | ||||
| 13 | 154246801 | Gasket-sump |
|
$ 57.97 | |||||
| 14 | 154723801 | Sump Assembly |
|
Immediately | $ 67.73 | ||||
| 16 | 154246502 | Retainer, Sump |
|
Immediately | $ 44.89 | ||||
| 24 | 5304507158 | Spray Arm,assembly ,lower ,orbit Clean (Replaces: 154821902) |
|
Immediately | $ 87.79 | ||||
| 32 | 5304507087 | Tube,delivery (Replaces: 154824201) |
|
Immediately | $ 67.26 | ||||
| 55 | 5304534830 | Bracket,motor (Replaces: 154595901) |
|
$ 6.16 | |||||
| 58 | 154246402 | Check Ball |
|
Immediately | $ 62.21 | ||||
| 59 | 154246901 | O-ring,rear |
|
Immediately | $ 63.00 | ||||
| 61 | 5304532204 | Grommet,delivery Tube (Replaces: 154463402) |
|
Immediately | $ 9.53 | ||||
| 62 | 5304532235 | Support,spray Arm ,grey ,lower (Replaces: 154294102) |
|
Immediately | $ 8.14 | ||||
| 63 | 5304532205 | Base,soil Director ,w/filter (Replaces: 154775402) |
|
Immediately | $ 15.27 | ||||
| 65 | 154283005 | Filter Assy,grey |
|
$ 281.14 | |||||
| 66 | 5304532206 | Trap,glass ,grey (Replaces: 154252702) |
|
Immediately | $ 12.48 | ||||
| 24A | A01986801 | Spray Arm,grey ,center (Replaces: 154468502) |
|
Immediately | $ 209.32 | ||||
| 24B | 5304506516 | Spray Arm,assembly ,upper (Replaces: 154754502) |
|
Immediately | $ 35.71 | ||||
| 32A | 154406401 | Gasket,delivery Tube |
|
Immediately | $ 17.18 | ||||
| 59A | 154247001 | O-ring,front |
|
Immediately | $ 63.00 | ||||
| F1 | 154825001 | Heater,round |
|
Immediately | $ 101.32 | ||||
| F60 | A00126401 | Pump Assembly,drain ,w/seal-impeller (Replaces: 154736201) |
|
Immediately | $ 158.89 | ||||
| F70 | 154853801 | Motor & Pump Assy,variable Speed |
|
Immediately | $ 351.12 | ||||
| F71 | 154762601 | Sensor,turbidity ,snap-in ,w/seal |
|
Immediately | $ 86.63 | ||||
| NI | 154741501 | Screw,drain Motor Mtg ,(3) |
|
$ 14.96 | |||||
| NI | 154611101 | Clamp,hose ,1.29`` Open ,worm Gear ,(2) (Replaces: 154106801) |
|
$ 13.39 | |||||
| NI | 154779601 | Screw,ph ,8-10 ,(2) |
|
$ 1.58 | |||||
| NI | 154783101 | Screw,plt ,8-10 |
|
$ 7.88 | |||||
| NI | 154289801 | Shield-heater Terminal |
|
$ 7.33 | |||||
| NI | 154106202 | Nut,heater ,(2) |
|
Immediately | $ 20.35 | ||||
| NI | 154754901 | Screw,sump Mtg ,8-16 ,(4) |
|
Immediately | $ 4.73 | ||||
| NI | 154491101 | Screw,delivery Tube |
|
$ 4.02 | |||||
| NI | 807048001 | Flapper,valve ,drain Pump (Replaces: 154617301) |
|
Immediately | $ 9.89 |
