SELECT A DIAGRAM

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Cabinet And Stirrer Parts


06 - Microwave Compartment Parts


07 - Microwave Door Parts


08 - Top Support And Turntable Parts


09 - Optional Parts

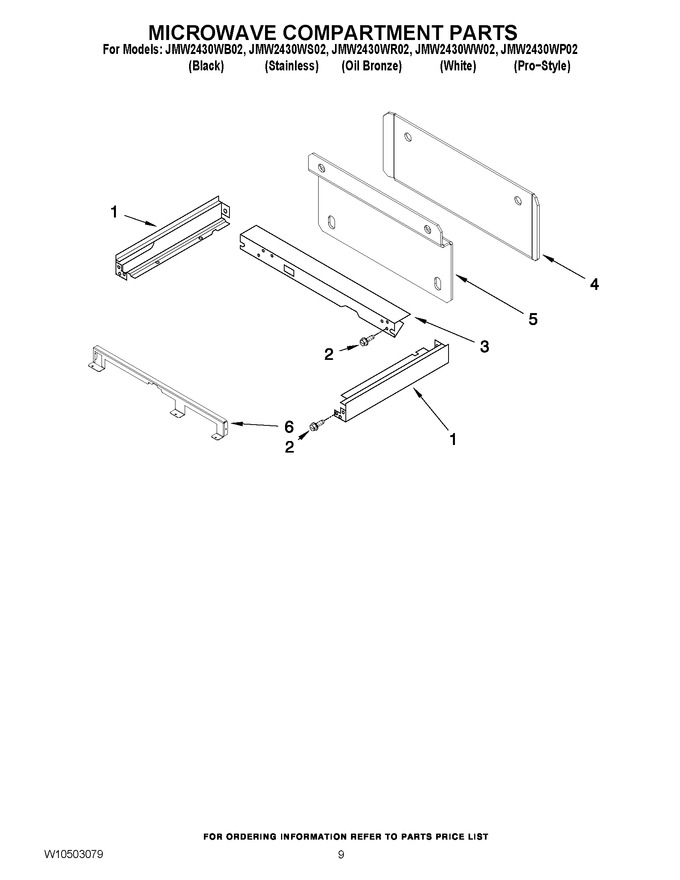

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10176190		Support Rails (right)				$ 124.80
1	W10176189		Support Rails (left)				$ 71.14
2	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
3	W10176195		Support, Rear				$ 50.20
4	W10186985		Guide, Stop		Appelez-nous	-
5	W10186986		Stop, Microwave		Appelez-nous	-
6	W10176196		Support, Front				$ 90.56

    View Diagram in Separate Window       Print Part List
