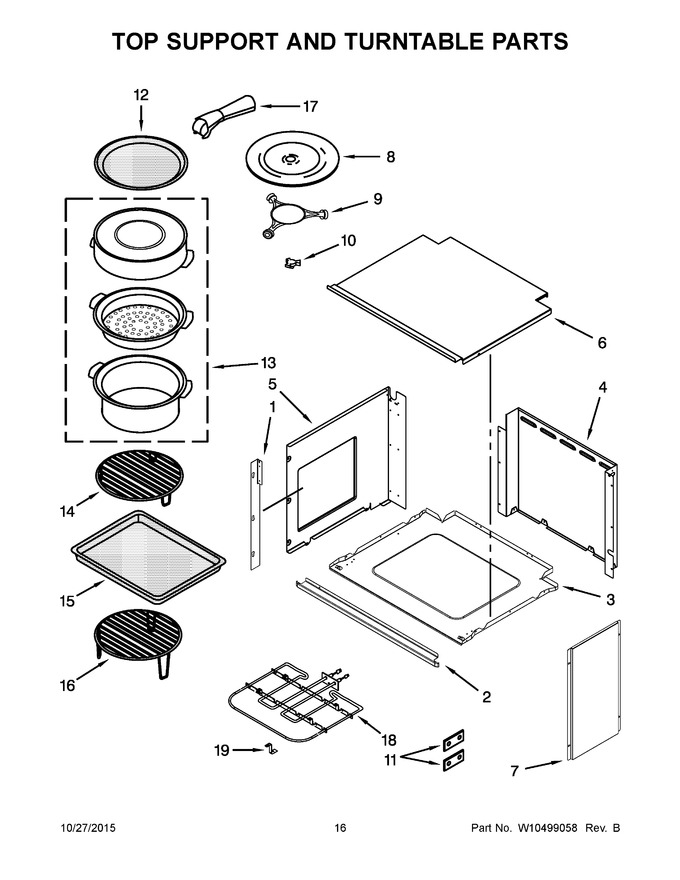

09 - Top Support And Turntable Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10493731		Trim, Side (left)		Appelez-nous	-
2	W10486211		Vent, Top Microwave				$ 53.81
3	W10176063		Retainer, Bottom		Appelez-nous	-
4	W10186984		Cover, Rear		Appelez-nous	-
5	W10176065		Retainer, Side (left)		Appelez-nous	-
6	W10175998		Panel, Top Retainer		Appelez-nous	-
7	W10176066		Cover, Service		Appelez-nous	-
8	W11373838		Tray, Cook   (Replaces: 8205676)			Immediately	$ 78.50
9	W11110134		Ring, Turntable   (Replaces: 8205678)			Immediately	$ 74.00
10	WPW10776938		Drive, Turntable   (Replaces: 8205677)			Immediately	$ 29.47
11	W10915651		Plate, Cover   (Replaces: W10120230)			Immediately	$ 88.90
12	W11512490		Plate, Crisp   (Replaces: W10330573)			Immediately	$ 127.58
13	W10660052		Steamer   (Replaces: W10120484)			Immediately	$ 30.02
14	4452220		Rack, Convection				$ 170.37
15	W11512489		Plate, Baking   (Replaces: W10120486)				$ 97.56
16	W11175831		Rack   (Replaces: W10120483)				$ 44.88
17	W10851464		Handle, Pan   (Replaces: W10120481)				$ 26.07
18	WPW10387651		Element, Grill   (Replaces: W10387651)				$ 358.84
19	W11724411		Support, Element   (Replaces: W10288008)			Immediately	$ 60.47
1A	W10493732		Trim, Side (right)		Appelez-nous	-
5A	W10176064		Retainer, Side (right)		Appelez-nous	-
