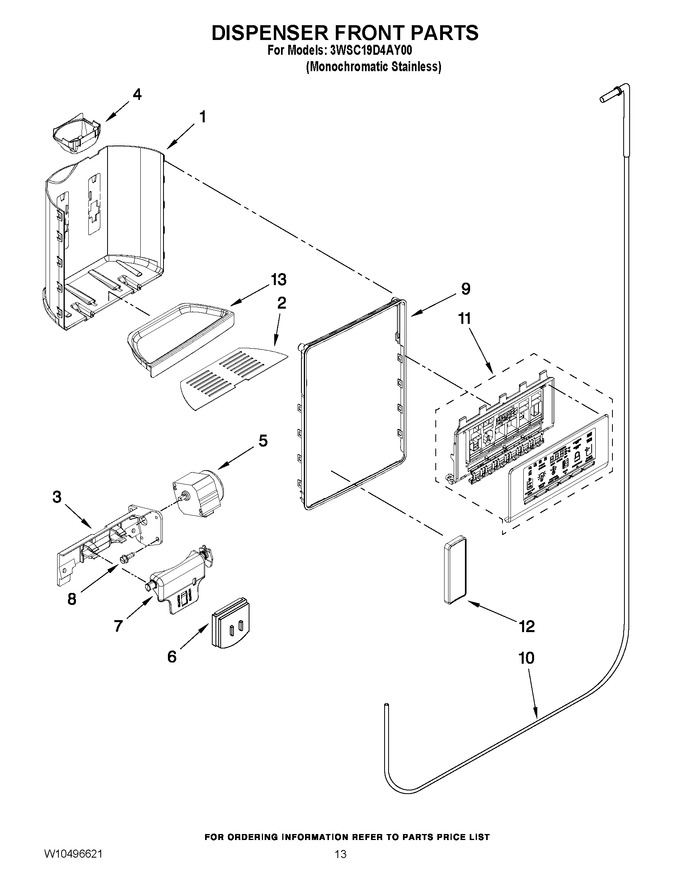

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W10276259 | Grate, Drip Tray |
|
- | |||||
| 3 | W10174827 | Bracket, Ice Door |
|
$ 76.42 | |||||
| 4 | WPW10435760 | Chute, Door (Replaces: W10339578) |
|
Immediately | $ 23.94 | ||||
| 5 | WPW10205978 | Motor, Ice Door (Replaces: W10205978) |
|
$ 104.12 | |||||
| 6 | W10781989 | Ice Door Assembly (includes Items 3, 5, 7, & 8) (Replaces: W10353570) |
|
$ 166.39 | |||||
| 7 | WPW10346124 | Support, Ice Door (Replaces: W10346124) |
|
$ 41.85 | |||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 9 | WPW10276257 | Trim Ring (Replaces: W10276257) |
|
$ 147.06 | |||||
| 10 | WPW10386778 | Water Tube (Replaces: W10277960) |
|
Immediately | $ 132.74 | ||||
| 11 | W10276268 | Electronic Control Assy |
|
- | |||||
| 12 | WPW10370592 | Pad, Ice & Water (Replaces: W10370592) |
|
$ 322.90 | |||||
| 13 | W10276253 | Tray, Housing |
|
- |
