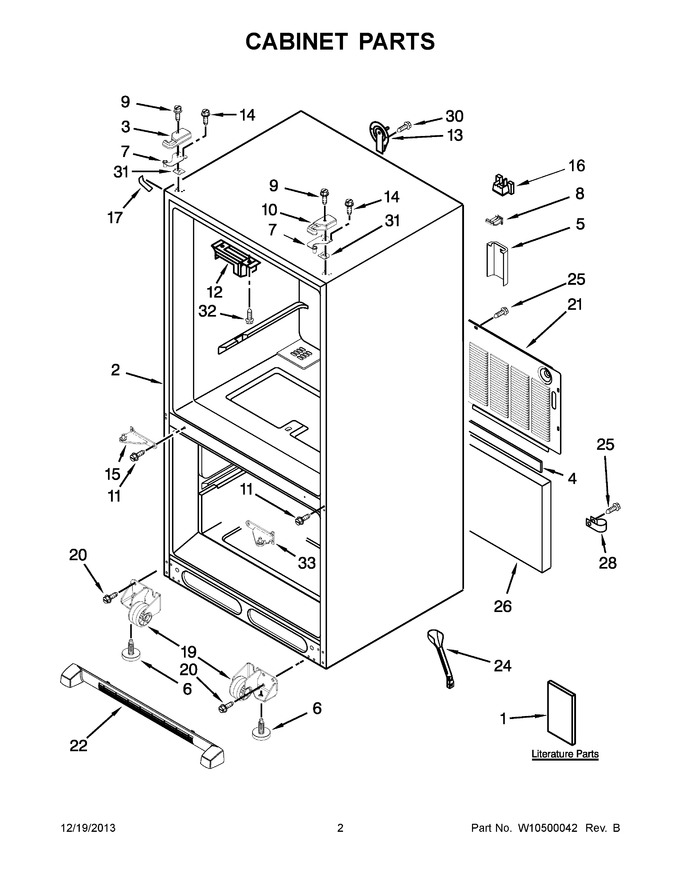

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10366204 | Use And Care Guide |
|
- | |||||
| 1 | W10475389 | Tech Sheet |
|
- | |||||
| 1 | W10187810 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W10337647 | Cover, Left Hinge (black) (Replaces: 12962301B) |
|
Immediately | $ 23.33 | ||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | W10208593 | Guard, Dual Water Valve |
|
$ 15.71 | |||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 7 | W11592375 | Hinge, Top Left Hand (Replaces: 12963204ED) |
|
$ 31.92 | |||||
| 7 | W11592374 | Hinge, Top Right Hand (Replaces: 12963205ED) |
|
Immediately | $ 31.90 | ||||
| 8 | 12831101 | Sweep, Dual Tube |
|
$ 13.03 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | WP67005956 | Cover, Right Hinge (black) (Replaces: 12962302B) |
|
$ 22.54 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 8.43 | ||||
| 12 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 13 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W10918164 | Hinge, Center (left) (black) (Replaces: 13000007ED) |
|
$ 91.53 | |||||
| 16 | 12777701 | Block, Fill Tube |
|
$ 7.17 | |||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 19 | W11820445 | Assembly, Roller (right Hand) (Replaces: W10275849) |
|
Immediately | $ 37.35 | ||||
| 19 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10275850) |
|
Immediately | $ 37.35 | ||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 207.99 | |||||
| 22 | WPW10534153 | Grille, Toe (black) (Replaces: W10244561N) |
|
$ 154.57 | |||||
| 24 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 26 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 28 | W10833902 | Clamp, Tube (Replaces: M0108105) |
|
$ 11.54 | |||||
| 30 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 31 | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 100.60 | |||||
| 31 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 99.53 | |||||
| 32 | WP7101P126-60 | Screw (Replaces: 12990303) |
|
Immediately | $ 8.36 | ||||
| 33 | W10918164 | Hinge, Center (right) (black) (Replaces: 13000008ED) |
|
$ 91.53 |
