SELECT A DIAGRAM
New Model Search:

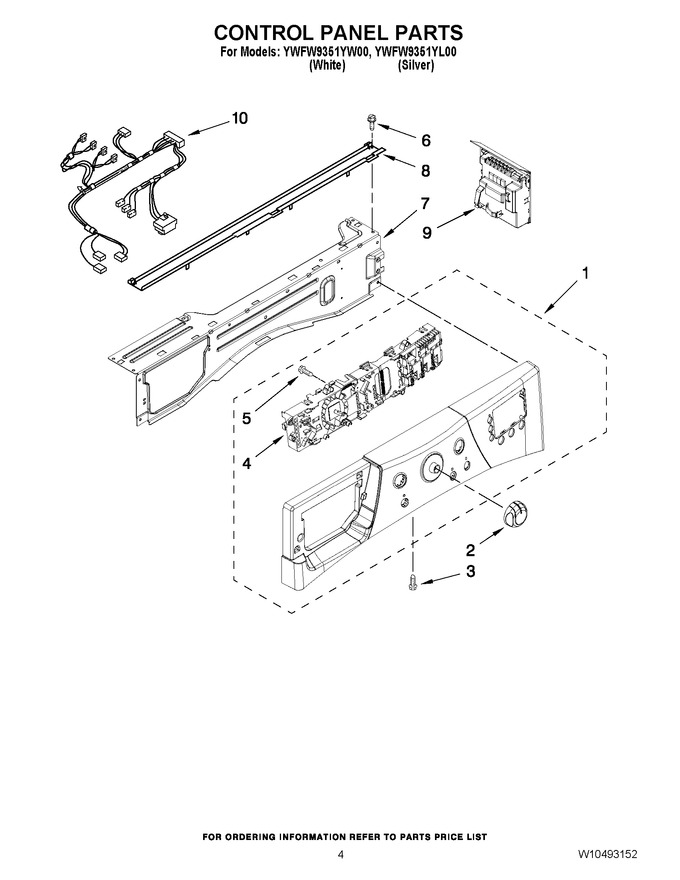

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10370315 | Console (white) (Replaces: W10370315) |
|
$ 715.61 | |||||
| 1 | W10370317 | Console (silver) |
|
$ 409.05 | |||||
| 2 | WPW10251394 | Knob, Control (Replaces: W10251394) |
|
$ 55.94 | |||||
| 3 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 12.14 | |||||
| 4 | W10370329 | User Interface |
|
$ 237.84 | |||||
| 5 | W10006580 | Screw, M3-1.12 X 12 |
|
- | |||||
| 6 | WP489442 | Screw, 8-18 X 5/8 (Replaces: W10015090) |
|
Immediately | $ 11.49 | ||||
| 7 | W10846488 | Brace, Top Front (Replaces: W10240776) |
|
$ 92.31 | |||||
| 8 | 8540839 | Channel, Water |
|
$ 27.81 | |||||
| 9 | WPW10525373 | Microcomputer, Machine Control (Replaces: W10373841) |
|
Immediately | $ 339.77 | ||||
| 10 | W10323100 | Harness, Main Wiring |
|
$ 363.06 |
