Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10258326 Door, Left (white) Appelez-nous -
1 W10258327 Door, Left (black) Appelez-nous -
1 12978048SQ Door, Left (stainless Steel) Appelez-nous -
2 12978047SQ Door, Right (stainless Steel) Special Order $ 421.73

2 W10258328 Door, Right (white) Appelez-nous -
2 W10258329 Door, Right (black) Appelez-nous -
3 WP67003637 Door, Dairy   (Replaces: 67003637) In-Stock Immediately $ 82.67

4 WP67001279 Tray, Dairy   (Replaces: 67001279) In-Stock Immediately $ 88.01

5 67004040 Bucket, Door (medium (1)) Special Order $ 95.99

5 WP67004041 Bucket, Door (small (2))   (Replaces: 67004041) Special Order $ 89.01

5 67004641 Bucket, Door (gallon W/ Small Window) Special Order $ 45.66

5 W10166007 Bucket, Door (gallon W/ Large Window) Special Order $ 34.58

6 WP12722803B Mullion, Door (black)   (Replaces: 67003264) In-Stock Immediately $ 206.80

6 WP12722803W Mullion, Door (white)   (Replaces: 67003263) In-Stock Immediately $ 261.21

7 W11311945 Screw   (Replaces: 12990204) Special Order $ 14.72

8 W11368721 Gasket, Door (black)   (Replaces: W10163895) In-Stock Immediately $ 169.21

8 W10830189 Gasket, Door (white)   (Replaces: W10163894) In-Stock Immediately $ 228.91

9 WPW10179168 Handle, Door (white - Rh)   (Replaces: W10179168) Special Order $ 171.41

9 W10197305 Handle, Door (stainless (lh&rh)) Appelez-nous -
9 W10179171 Handle, Door (white - Lh) Special Order $ 77.64

9 W10179166 Handle, Door (black - Rh) Appelez-nous -
9 W10179169 Handle, Door (black - Lh) Special Order $ 72.25

10 WP98165 Screw   (Replaces: 67006287) Special Order $ 8.57

11 12968202W Stop, Door (white) Special Order $ 69.29

11 W11708403 Stop, Door (black)   (Replaces: 67007011) In-Stock Immediately $ 14.75

12 Y12528501 Nameplate   (Replaces: 12528501) In-Stock Immediately $ 62.74

13 WP12992902 Mount, Handle   (Replaces: 12992902) Special Order $ 11.91

15 WP67003639 Closure, Door (black)   (Replaces: 67003639) Special Order $ 90.32

15 WP67003638 Closure, Door (white)   (Replaces: 67003638) In-Stock Immediately $ 8.15

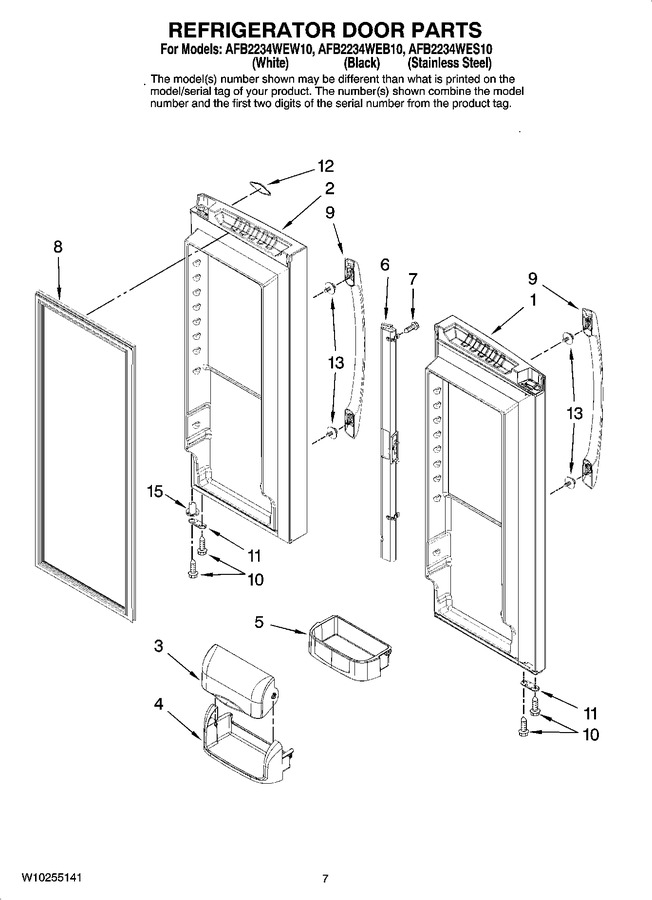

    View Diagram in Separate Window     Print Icon   Print Part List
