Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 98009821 Trim, Top Appelez-nous -
2 W10144828 Endcap (left) Appelez-nous -
2 W10144829 Endcap (right) Appelez-nous -
3 WP3400805 Screw   (Replaces: 98015526) Special Order $ 7.55

4 W10145101 Support, Backguard Appelez-nous -
5 98009179 U - Nut Special Order $ 14.03

6 W10837731 Screw   (Replaces: 98006633) Special Order $ 8.30


    View Diagram in Separate Window     Print Icon   Print Part List

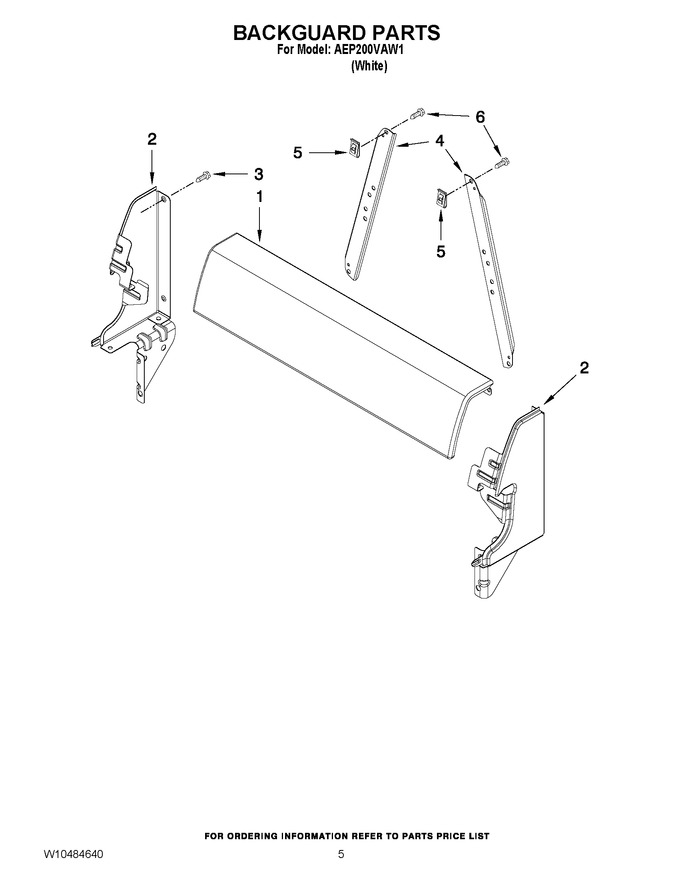

Diagram for AEP200VAW1
