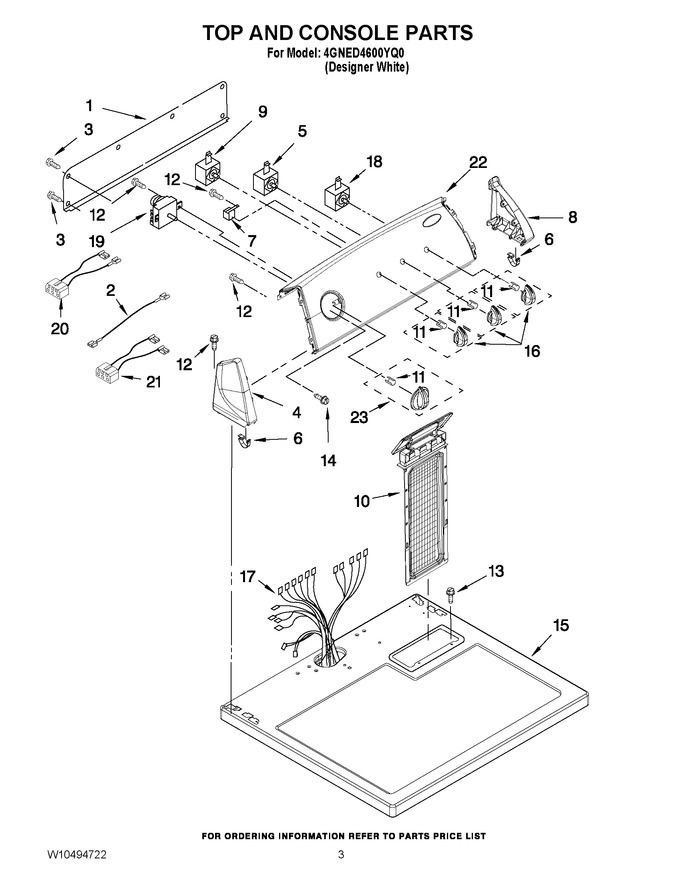

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
2	W10113080		Wire, Jumper Mini Buzzer		Appelez-nous	-
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	WPW10251358		Cap, End (l.h.)   (Replaces: W10251358)				$ 51.42
5	WP3405156		Switch, Wrinkle Shield   (Replaces: 3405156)				$ 152.79
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
7	3952439		Buzzer, Mini		Appelez-nous	-
8	WPW10251355		Cap, End (r.h.)   (Replaces: W10251355)				$ 51.39
9	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
10	W11778253		Screen, Lint   (Replaces: 8559787)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw, 8-18 X 5/16   (Replaces: 3348629)			Immediately	$ 8.25
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	W10850756		Screw, Grounding   (Replaces: 8533974)				$ 8.20
15	WP8563663		Top   (Replaces: 8559800)			Immediately	$ 349.25
16	W10317458		Knob, Control		Appelez-nous	-
17	WPW10386312		Harness, Wiring   (Replaces: W10386312)				$ 255.86
18	WPW10112668		Switch, Push-to-start   (Replaces: W10112668)				$ 128.11
19	WP3979618		Timer, 60 Hz.   (Replaces: 3979618)				$ 385.28
20	3397695		Wire, Jumper (guard On/off)				$ 90.72
21	8539893		Wire, Jumper (temperature)   (Replaces: 3396029)				$ 19.78
22	W10484641		Control Panel & Bracket Assembly (white)		Appelez-nous	-
23	W10317457		Timer Knob Assembly		Appelez-nous	-
