SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts

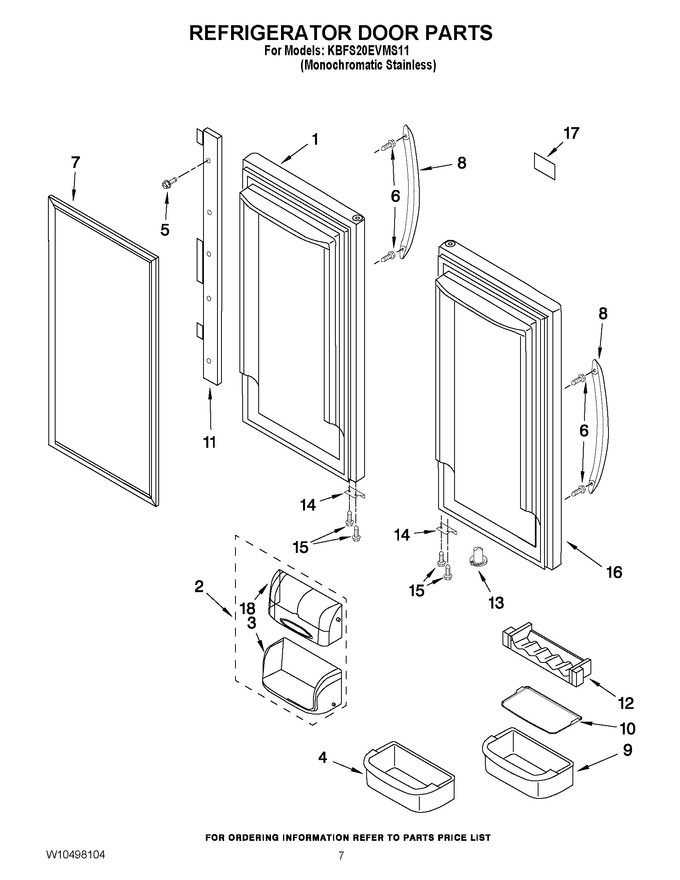

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107779S		Door, Refrigerator (left) (stainless)		Appelez-nous	-
2	WP12744905		Assy, Dairy   (Replaces: 12744905V)				$ 113.99
3	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
4	WPW10371195		Bucket, Medium   (Replaces: W10371195)			Immediately	$ 87.37
5	W11311945		Screw   (Replaces: 12990204)				$ 14.72
6	WPW10661886		Screw   (Replaces: W10303465)			Immediately	$ 12.88
7	W10830162		Gasket, Door (apollo Grey)   (Replaces: W10443225)			Immediately	$ 212.57
8	WPW10314517K		Handle, Door (stainless)   (Replaces: W10314517N)				$ 243.37
9	WPW10289498		Bucket, Gallon   (Replaces: W10289498)				$ 109.26
10	W11402028		Gripper, Gallon   (Replaces: 12567320SP)			Immediately	$ 89.74
11	WP12722803AP		Mullion, Door (apollo Grey)   (Replaces: 12722803AP)			Immediately	$ 177.93
12	WP67005626		Caddy, Can   (Replaces: 12690102)				$ 81.49
13	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 61.46
14	W11401472		Stop, Door (apollo Grey)   (Replaces: 10447114)			Immediately	$ 23.56
15	WP98165		Screw   (Replaces: 12990504)				$ 8.57
16	13107762S		Door, Right (stainless)		Appelez-nous	-
17	WPW10243391		Nameplate (grey)   (Replaces: W10243391)				$ 58.31
18	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 82.67

    View Diagram in Separate Window       Print Part List
