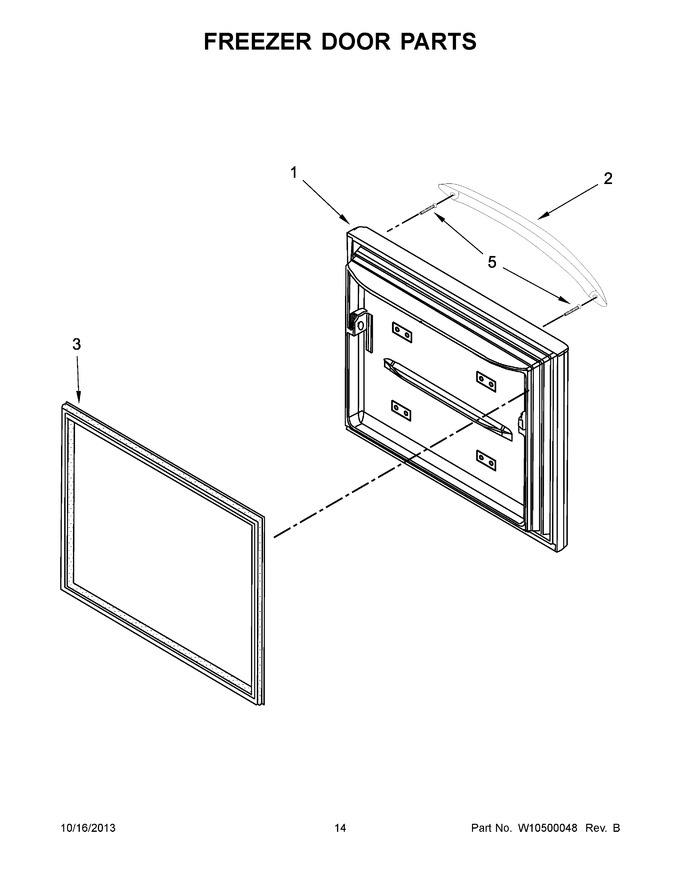

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12977869WQ | Door, Freezer (white) (Replaces: 12977869W) |
|
$ 1,021.67 | |||||
| 1 | 12977869BQ | Door, Freezer (black) (Replaces: 12977869B) |
|
$ 1,180.95 | |||||
| 2 | W10314523 | Handle, Door (white) |
|
$ 64.75 | |||||
| 2 | W10314524 | Handle, Door (black) |
|
- | |||||
| 3 | W10443315 | Gasket, Door (white) (Replaces: W10443315N) |
|
$ 193.98 | |||||
| 3 | WPW10436250 | Gasket, Door (black) (Replaces: W10436250N) |
|
Immediately | $ 365.39 | ||||
| 5 | WPW10661886 | Screw (Replaces: W10303465) |
|
Immediately | $ 12.88 |
