SELECT A DIAGRAM
New Model Search:

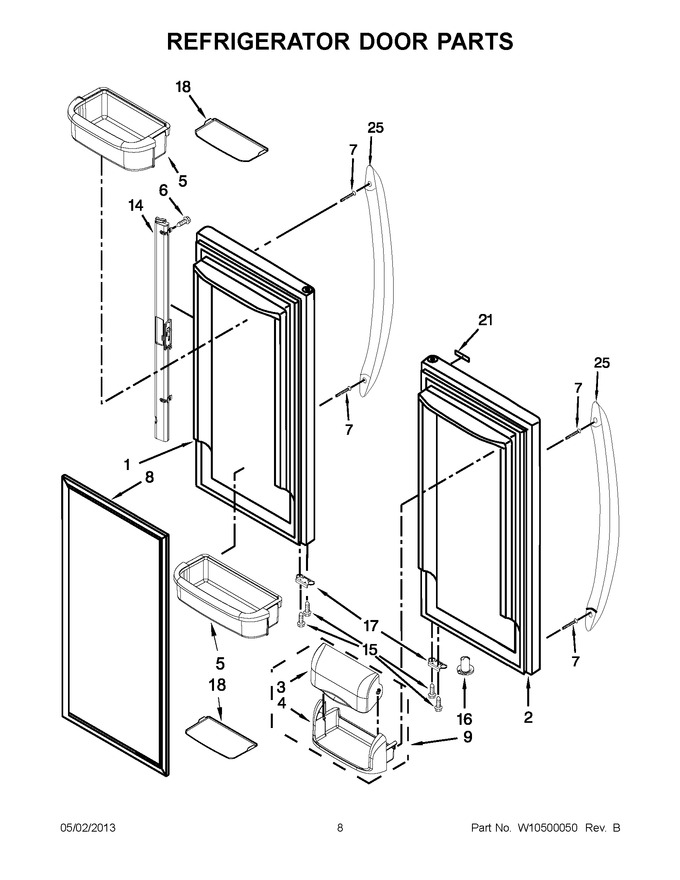

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107861S | Door, Left (stainless) |
|
- | |||||
| 2 | 13107856SQ | Door, Right (stainless) (Replaces: 13107856S) |
|
$ 994.59 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10289489 | Bucket (gallon) (Replaces: W10289489) |
|
Immediately | $ 88.59 | ||||
| 5 | WPW10371193 | Bucket (medium) (Replaces: W10371193) |
|
Immediately | $ 74.80 | ||||
| 5 | W10351079 | Bucket (small) |
|
$ 33.25 | |||||
| 5 | 12918702SP | Bucket (large) |
|
$ 33.57 | |||||
| 6 | W11214483 | Screw (Replaces: 12992601) |
|
$ 14.72 | |||||
| 7 | WPW10661886 | Screw (Replaces: W10303465) |
|
Immediately | $ 12.88 | ||||
| 8 | W10830283 | Gasket, Door (grey (left Hand)) (Replaces: W10443269) |
|
$ 205.44 | |||||
| 8 | W10830162 | Gasket, Door (grey (right Hand)) (Replaces: W10443225) |
|
Immediately | $ 212.57 | ||||
| 9 | WP12744905 | Door, Dairy (Replaces: 12744905V) |
|
$ 113.99 | |||||
| 14 | WP12722803AP | Mullion, Door Grey (Replaces: 12722803AP) |
|
Immediately | $ 177.93 | ||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 16 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 17 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 18 | WPW10450021 | Gripper (medium) (Replaces: 12567321SP) |
|
Immediately | $ 100.93 | ||||
| 18 | W11408990 | Gripper (small) (Replaces: 12567323) |
|
Immediately | $ 85.90 | ||||
| 18 | 12567324 | Gripper (large) |
|
- | |||||
| 18 | W10450004 | Gripper (gallon) (Replaces: 12567325) |
|
$ 100.36 | |||||
| 21 | WPW10243391 | Nameplate (stainless) (Replaces: W10243391) |
|
$ 58.31 | |||||
| 25 | WPW10314517K | Handle, Door (stainless) (Replaces: W10314517N) |
|
$ 243.37 |
