View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

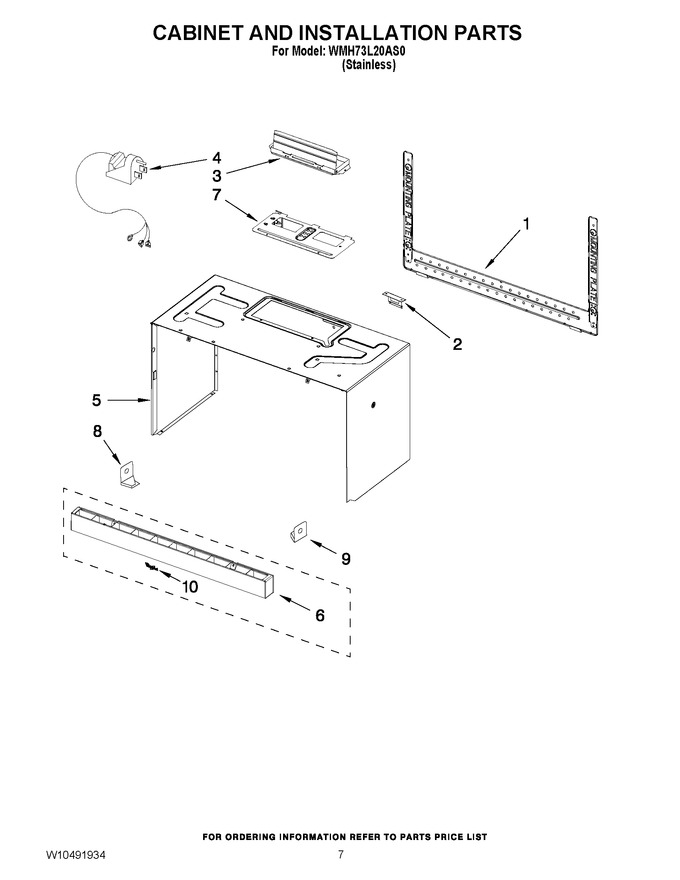

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting (Replaces: W10440498) |
|
Immediately | $ 24.69 | ||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 37.20 | |||||
| 3 | W10843943 | Damper Assembly (Replaces: 8206442) |
|
Immediately | $ 73.04 | ||||
| 4 | W10708076 | Cord, Power (Replaces: W10269470) |
|
$ 21.56 | |||||
| 5 | WPW10462001 | Case, Outer (Replaces: W10462001) |
|
$ 297.51 | |||||
| 6 | WPW10468667 | Grille, Vent (Replaces: W10468667) |
|
$ 93.65 | |||||
| 7 | W10210832 | Plate, Damper |
|
$ 6.68 | |||||
| 8 | W11026306 | Holder, Vent Left Side (Replaces: W10393278) |
|
Immediately | $ 7.55 | ||||
| 9 | W10703282 | Holder, Vent Right Side (Replaces: W10393276) |
|
$ 11.00 | |||||
| 10 | W11178521 | Nameplate, Whirlpool (Replaces: W10481433) |
|
Immediately | $ 63.13 | ||||
| NI | W10821385 | Installation, Hardware (Replaces: 8206614) |
|
Immediately | $ 103.72 | ||||
| NI | W10190018 | Template, Upper |
|
Immediately | $ 7.55 | ||||
| NI | WP8169704 | Screw, Top Mountng (Replaces: 8169704) |
|
Immediately | $ 13.35 | ||||
| NI | W10434804 | Main Harness |
|
$ 177.32 | |||||
| NI | W10539840 | Grounding Wire To Pcba (Replaces: 8205696) |
|
$ 25.08 | |||||
| NI | W10476537 | Hdlmp/tt Wire Assy |
|
- |
