SELECT A DIAGRAM

01 - Cover


03 - Freezer Drawer - Basket


05 - Fresh Food Door

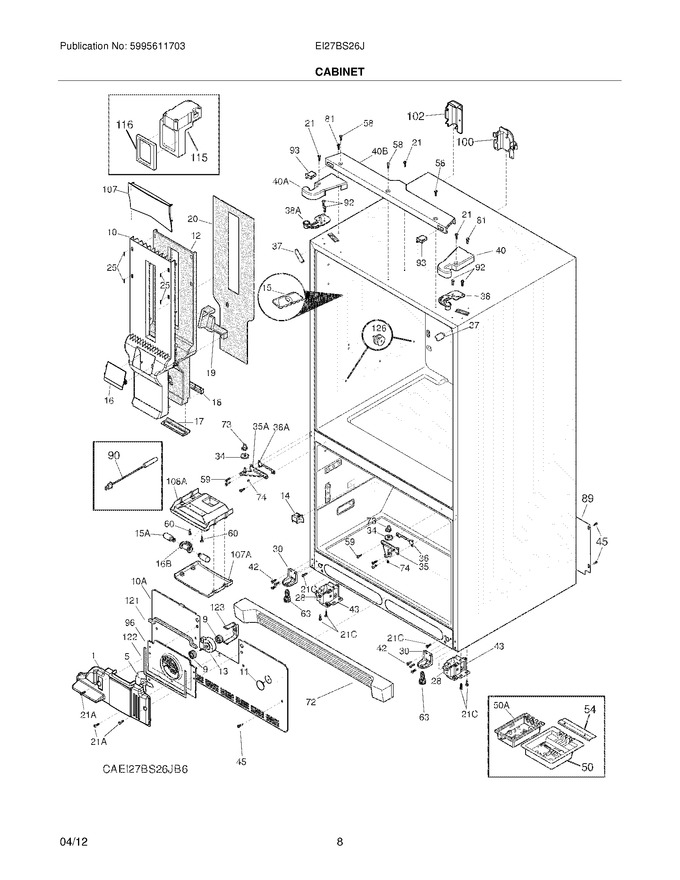

07 - Cabinet


09 - Shelves


11 - System


13 - Controls & Ice Dispenser


15 - Ice Container


17 - Ice Maker


22 - Wiring Diagram


23 - Wiring Diagram


24 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242099401		Cover-fan				$ 29.11
9	241518301		Bushing,motor Mounting				$ 74.03
10	242058504		Cover-air Duct				$ 170.73
11	5303208309		Plug-hole, Factory Test				$ 50.56
12	242073901		Foam-air Supply				$ 66.31
16	241860502		Cover-damper				$ 17.48
17	241928201		Gasket-air Duct				$ 19.69
18	241928101		Duct-air				$ 8.23
19	241871901		Support-eps Damper				$ 20.48
20	241922902		Cover-air Duct,rear				$ 0.07
21	241732101		Screw,10-32 X 1/2			Immediately	$ 17.33
25	241949502		Clip,air Vent				$ 22.75
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335502)			Immediately	$ 34.81
30	241778701		Bracket-anti Tip				$ 29.49
34	241868301		Washer,hinge ,nylon ,(2)				$ 34.65
35	241767211		Hinge-lower,rh   (Replaces: 241767205)				$ 113.76
36	241868201		Spacer,door ,lower Rh				$ 55.13
37	5304494164		Trim-cabinet Corner,gray ,(2)   (Replaces: 240337615)				$ 9.19
38	241761301		Bracket-upper Hinge,rh				$ 73.61
40	5304504483		Cover-upper Hinge,grey ,rh   (Replaces: 241778009)				$ 71.76
42	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 15.75
43	5304499445		Roller Assy,front ,(2)   (Replaces: 240335006)			Immediately	$ 34.81
45	241500303		Screw,hex Washer Head ,8-18ab X 1/2			Immediately	$ 5.06
54	241532401		Channel				$ 33.86
58	241500305		Screw   (Replaces: 241853202)				$ 3.37
59	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 9.27
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 13.39
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 42.65
72	242054804		Grille/kickplate				$ 92.93
73	242075701		Cam-lower Hinge				$ 25.28
74	242026701		Screw,no.6-32 X 9/16		Appelez-nous	-
81	134154100		Screw,hex Head ,no.10-32 X 3/8   (Replaces: 242025601)				$ 14.96
89	5304520905		Cover-access,w/label   (Replaces: 241733905)			Immediately	$ 82.25
90	240597220		Sensor,(2)   (Replaces: 240597203)			Immediately	$ 5.73
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 14.96
96	241860601		Shroud-evap Fan Mtg			Immediately	$ 146.48
100	242157601		Cover,tubing ,eps Block				$ 13.24
102	242157501		Cover,tubing ,eps Block				$ 26.47
107	241963101		Duct-air,top				$ 41.16
115	5303918899		Damper,motorized   (Replaces: 241518501)			Immediately	$ 81.38
116	241518601		Seal-damper,foam				$ 10.24
121	241860103		Gasket-evap,upper			Immediately	$ 4.14
121	241860112		Gasket-evap,upper				$ 7.88
122	241860117		Gasket-evap,bottom   (Replaces: 241860102)			Immediately	$ 12.46
122	241860111		Gasket-evap,bottom				$ 13.39
123	242135301		Clip,evap Fan Motor ,evap Fan Motor				$ 8.66
126	242081301		Screw-shoulder		Appelez-nous	-
10A	242084101		Cover-evap Coil,lower		Appelez-nous	-
21A	5304453707		Screw,no.8-18   (Replaces: 241953901)			Immediately	$ 17.69
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 15.75
35A	241767212		Hinge-lower,lh   (Replaces: 241767206)				$ 115.44
36A	241868202		Spacer,door ,lower Lh				$ 26.12
38A	241761302		Bracket-upper Hinge,lh				$ 71.66
40A	5304504482		Cover-upper Hinge,grey ,lh   (Replaces: 241778010)				$ 72.31
40B	241862405		Cover-upper Hinge,grey ,center				$ 112.94
F107	241971601		Shield-light,frzr				$ 39.61
F108	241971801		Cover-wiring,freezer Light				$ 87.32
F10A	241860110		Gasket-coil Cover				$ 19.47
F10A	241860109		Gasket-coil Cover		Appelez-nous	-
F13	809069220		Motor,evaporator Fan   (Replaces: 241509402)			Immediately	$ 171.27
F14	242060201		Switch-light/lamp,frzr Door				$ 48.88
F15	241891104		Light-led		Appelez-nous	-
F15A	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 81.18
F16B	241622802		Socket-light,frz Light				$ 73.25
F16B	241510802		Harness-wiring,frz Light				$ 46.46
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 54.48
F50	242115230		Board-main Power,w/housing		Appelez-nous	-
F50A	241891604		Board-led Power		Appelez-nous	-
F93	241835505		Switch-light,grey			Immediately	$ 77.96
FNI	242045501		Harness-wiring				$ 34.12
FNI	242119001		Harness-wiring				$ 135.66
FNI	5304521649		Harness-wiring   (Replaces: 242015904)			Immediately	$ 112.92
FNI	5303918416		Thermistor Kit,t-3 Suction Lin ,icemaker				$ 105.16
NI	242118001		Shield,wiring Cover ,freezer		Appelez-nous	-
NI	240494001		Plug,button ,cab Liner Holes   (Replaces: 240479601)			Immediately	$ 20.22
NI	241969001		Cap,screw				$ 18.54
NI	242004802		Foam-strip				$ 6.30
NI	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 20.48
NI	241810104		Seal,housing				$ 13.48
NI	241859801		Cover-eps,damper				$ 8.93
NI	241953904		Screw,no.8-18				$ 11.81

    View Diagram in Separate Window       Print Part List
