SELECT A DIAGRAM
New Model Search:

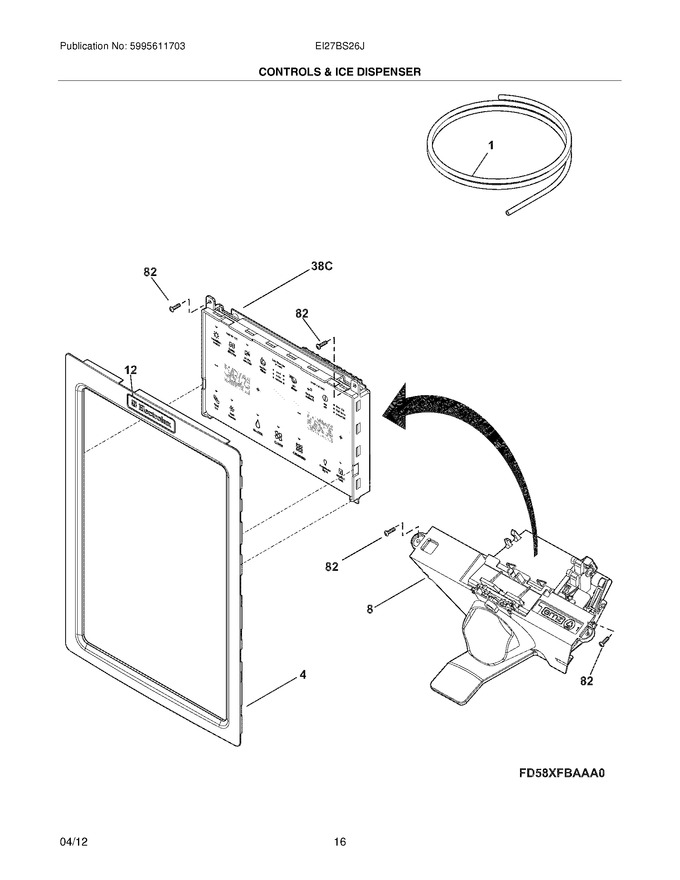

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976436 | Tube-water,5/16 - 42`` ,yellow ,sd (Replaces: 218976434) |
|
Immediately | $ 9.45 | ||||
| 4 | 241757503 | Cover-module,white |
|
$ 148.14 | |||||
| 8 | 242100006 | Module-dispenser,clear |
|
- | |||||
| 12 | 241873303 | Nameplate,white |
|
$ 6.62 | |||||
| 82 | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 19.01 | ||||
| F38C | 242102801 | Board-control,assembly |
|
$ 349.89 | |||||
| FNI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 352.64 | |||||
| FNI | 241510904 | Harness-dispenser,grounding |
|
$ 67.73 | |||||
| NI | 218976423 | Tube-water,5/16 - 68`` ,brown/tan |
|
$ 17.92 | |||||
| NI | 242169404 | Tube-water,ice Mold Fill ,1/4 - 44`` ,blue,w/extension |
|
- | |||||
| NI | 5303918484 | Chute-ice (Replaces: 242105401) |
|
$ 33.86 | |||||
| NI | 241965906 | Tube-water,5/16 - 67`` ,natural |
|
Immediately | $ 26.78 | ||||
| NI | 241920106 | Tube-water,assembly ,5/16 - 54`` ,green ,ice Maker Fill,w/extension (Replaces: 241920104) |
|
Immediately | $ 67.41 | ||||
| NI | 241964705 | Tube-water,1/4 - 24`` ,green |
|
$ 10.55 |
