SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Console And Water Inlet Parts

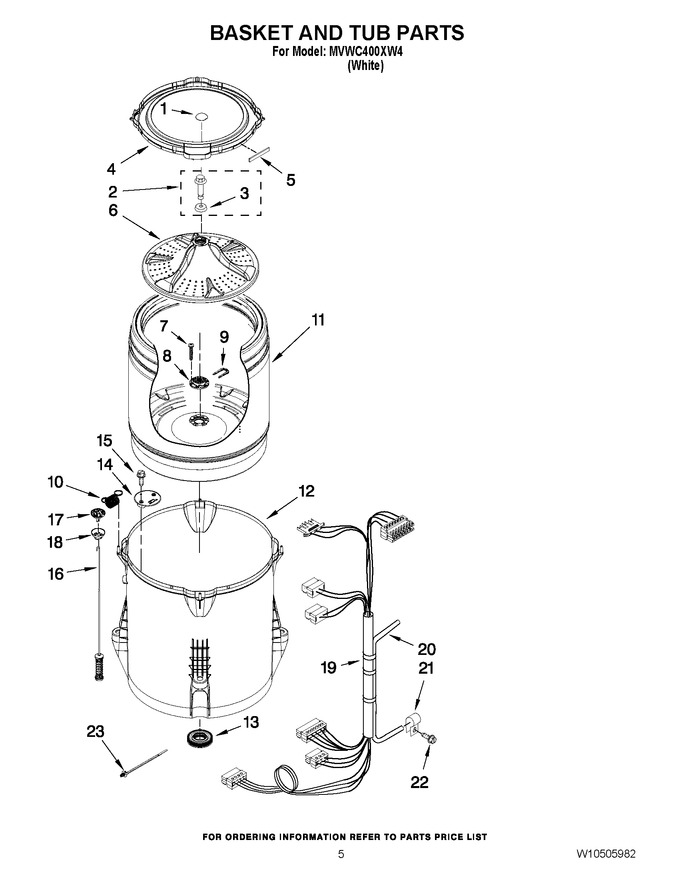

03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10305251		Cap, Impeller   (Replaces: W10305251)			Immediately	$ 22.02
2	W10772621		Screw & Washer Assembly   (Replaces: W10003790)			Immediately	$ 5.24
3	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 11.09
4	W10215146		Tub Ring (includes Item 5)				$ 84.89
5	W10205824		Absorber, Impact				$ 76.80
6	WPW10553968		Impeller (washplate)   (Replaces: W10215119)				$ 297.90
7	WP8533953		Screw   (Replaces: 8533953)			Immediately	$ 7.19
8	W10528947		Hub - Driven, Basket (includes Item 7)   (Replaces: W10396887)			Immediately	$ 44.23
9	W11385424		Retainer   (Replaces: W10402178)			Immediately	$ 12.35
10	W10400895		Spring, Tub Centering   (Replaces: W10348658)			Immediately	$ 8.39
11	WPW10521297		Basket Assembly (includes Items 7 & 8)   (Replaces: W10469848)				$ 488.46
12	W10324648		Tub (includes Item 13)   (Replaces: W10238301)				$ 344.62
13	W10324647		Seal, Tub   (Replaces: W10006371)			Immediately	$ 93.50
14	WPW10215093		Filter, Drain Pump   (Replaces: W10215093)				$ 62.15
15	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 7.82
16	W10780051		Damper Assembly, Tub Suspension (set Of 4-includes Items 17 & 18)   (Replaces: W10257085)			Immediately	$ 237.11
17	W10405423		Ball, Suspension (set Of 4 - Includes Item 18)		Appelez-nous	-
18	W10256551		Bushing, Suspension (set Of 4 - Includes Item 17)		Appelez-nous	-
19	W10456648		Harness, Lower (includes Items 20 & 23)				$ 111.08
20	WP353244		Hose, Pressure Switch   (Replaces: W10297437)			Immediately	$ 59.93
21	W10005430		Clamp, Pressure Hose Retainer			Immediately	$ 9.08
22	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 8.00
23	WPW10298887		Cable Tie   (Replaces: W10298887)				$ 7.60

    View Diagram in Separate Window       Print Part List
