Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10321109 Top Grille Assy (includes Items 6, 7 & 8) Special Order $ 417.10

2 W10188580 Cover, Unit Special Order $ 274.17

3 2256466 Back Panel Special Order $ 327.22

4 W10185625 Front, Unit Cover Special Order $ 262.53

5 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 8.40

6 2317923S Nameplate Appelez-nous -
7 WP489399 Screw   (Replaces: 489399) Special Order $ 7.30

8 WP2004333 Nut   (Replaces: 2004333) Special Order $ 11.24


    View Diagram in Separate Window     Print Icon   Print Part List

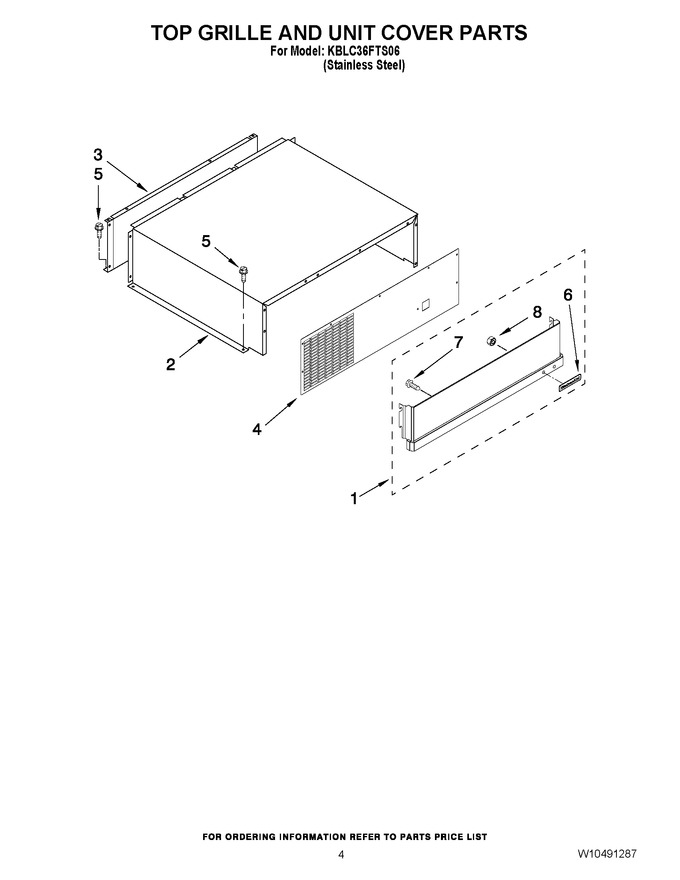

Diagram for KBLC36FTS06
