Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10292033 Lining, Door Special Order $ 115.75

2 W11132120 Glass, Inner (2)   (Replaces: W10272707) Special Order $ 179.33

3 WPW10272708 Frame, Glass   (Replaces: W10272708) Special Order $ 171.93

4 WPW10292297 Screw W/washer   (Replaces: W10292297) In-Stock Immediately $ 7.55

5 W10485723 Retainer, Insul. Special Order $ 252.42

6 WPW10321271 Insulation, Door   (Replaces: W10321271) Special Order $ 99.18

7 W10647259 Receiver   (Replaces: W10277006) In-Stock Immediately $ 9.32

8 W10326119 Assembly, Glass Door (includes Door Panel) Appelez-nous -
9 W10645182 Bracket, Handle   (Replaces: W10296658) Special Order $ 41.73

10 WPW10132940 Screw, Handle   (Replaces: 3196184) Special Order $ 10.12

11 WPW10289076 Handle, Door   (Replaces: W10289076) Special Order $ 334.61

12 WPW10485732 Hinge, Door (right)   (Replaces: W10485732) In-Stock Immediately $ 55.76

12 WPW10485733 Hinge, Door (left)   (Replaces: W10485733) In-Stock Immediately $ 59.59


    View Diagram in Separate Window     Print Icon   Print Part List

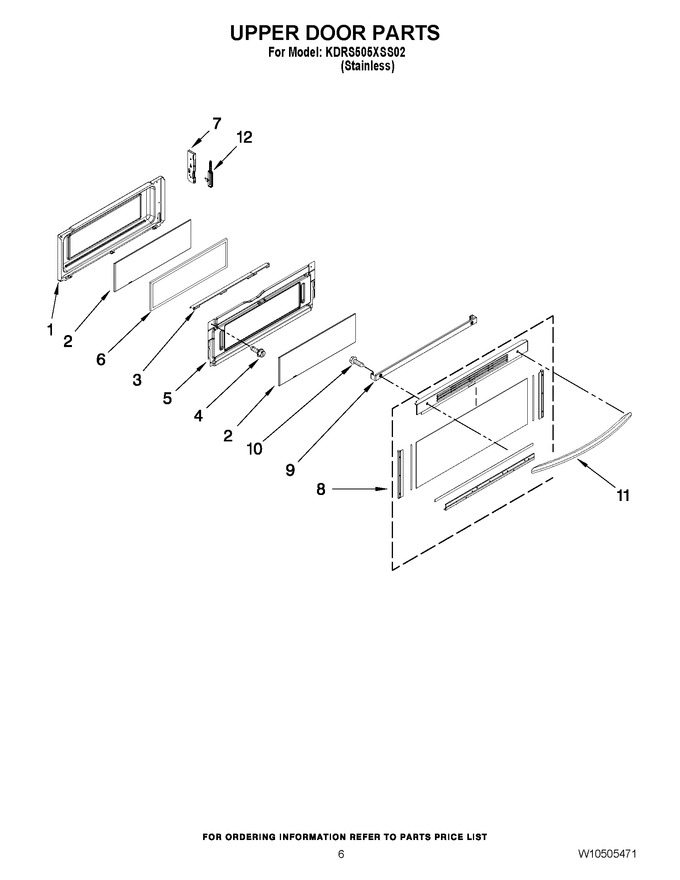

Diagram for KDRS505XSS02
