SELECT A DIAGRAM

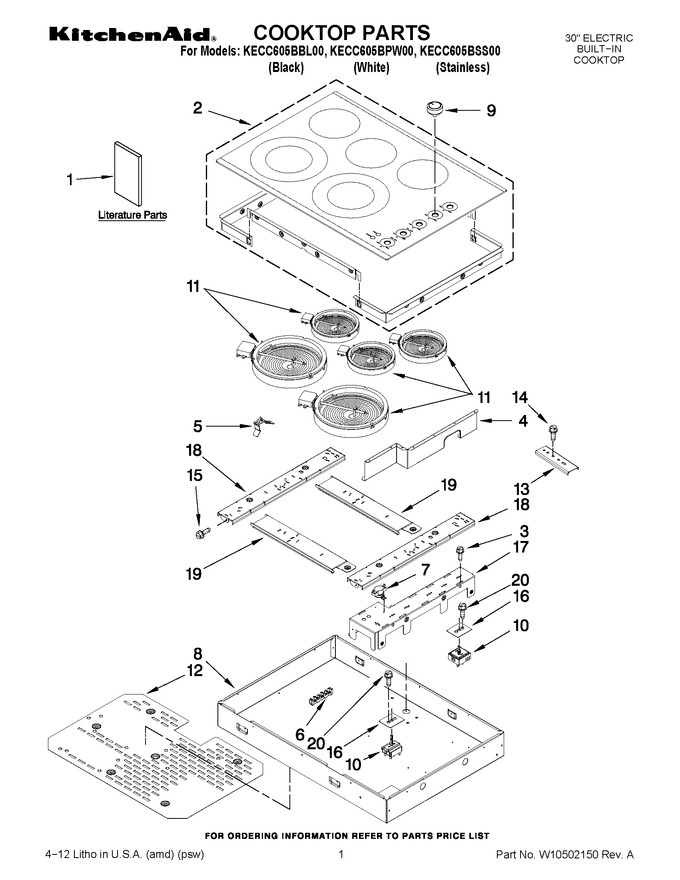

01 - Cooktop Parts
02 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10353374 | Installation Instructions |
|
- | |||||
| 1 | W10351318 | Installation Instructions Undercounter, |
|
- | |||||
| 1 | W10353375 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10352647 | Wiring Diagram |
|
- | |||||
| 2 | W10505182 | Cooktop (stainless) (Replaces: W10487911) |
|
$ 696.57 | |||||
| 2 | W10505181 | Cooktop (white) (Replaces: W10426119) |
|
- | |||||
| 2 | W10505180 | Cooktop (black) (Replaces: W10353369) |
|
$ 524.82 | |||||
| 3 | W10443110 | Screw |
|
Immediately | $ 15.25 | ||||
| 4 | W10311796 | Shield, Switch |
|
- | |||||
| 5 | WPW10225448 | Spring, Push-in (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 6 | WP8203546 | Block, Terminal (Replaces: 258076) |
|
Immediately | $ 30.13 | ||||
| 7 | W10464566 | Switch, Tod High Limit |
|
Immediately | $ 195.77 | ||||
| 8 | W10406277 | Box, Burner |
|
- | |||||
| 9 | WPW10353372 | Knob, Control (stainless) (Replaces: W10353372) |
|
$ 23.29 | |||||
| 9 | W10364147 | Knob, Control (black) |
|
$ 37.82 | |||||
| 10 | WP74007840 | Switch, Infinite (cr) (Replaces: 7403P755-60) |
|
Immediately | $ 190.46 | ||||
| 10 | WPW10434447 | Switch, Infinite (lf,rf) (Replaces: W10434447) |
|
$ 134.69 | |||||
| 10 | WPW10295048 | Switch, Infinite (rr) (Replaces: W10295048) |
|
Immediately | $ 159.95 | ||||
| 10 | WPW10326246 | Switch, Infinite (lr) (Replaces: W10326246) |
|
$ 153.02 | |||||
| 11 | WPW10275049 | Element, Surface (lf,rf) (Replaces: W10275049) |
|
Immediately | $ 314.23 | ||||
| 11 | W11171119 | Element, Surface (cr,lr) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 11 | WPW10270604 | Element, Surface (rr) (Replaces: W10270604) |
|
$ 223.48 | |||||
| 12 | W10422067 | Bottom, Heat Shield |
|
- | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 92.86 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 7.55 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 16 | 3183956 | Seal, Switch Cover |
|
$ 48.77 | |||||
| 17 | W10484349 | Plate, Switch |
|
- | |||||
| 18 | W10457917 | Rail, Vertical |
|
- | |||||
| 19 | W10311790 | Rail, Horizontal |
|
- | |||||
| 20 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 7.30 |
