01 - Cover Sheet

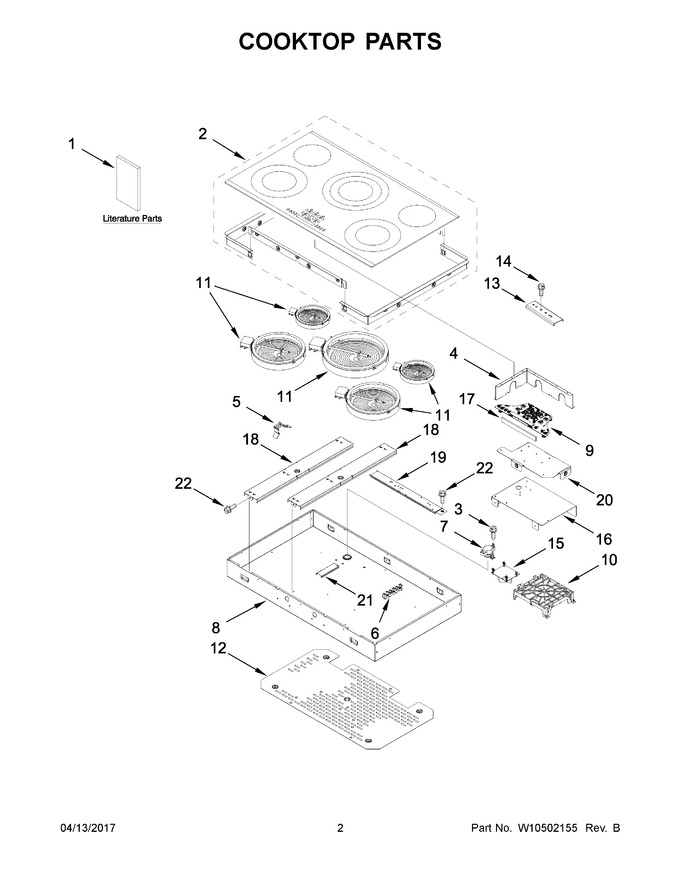

02 - Cooktop Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10353374 | Instructions, Installation |
|
- | |||||
| 2 | W10524409 | Cooktop (black) (Replaces: W10528444) |
|
$ 743.49 | |||||
| 3 | W10443110 | Screw |
|
Immediately | $ 15.25 | ||||
| 4 | W10340230 | Shield, Heat |
|
- | |||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 6 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 35.17 | ||||
| 7 | W10464566 | Switch, Tod High Limit |
|
Immediately | $ 195.77 | ||||
| 8 | W10432543 | Box, Burner |
|
- | |||||
| 9 | WPW10545370 | Interface, User (Replaces: W10355748) |
|
$ 611.63 | |||||
| 10 | WPW10387653 | Manager, Appliance (Replaces: W10387653) |
|
$ 460.22 | |||||
| 11 | WPW10275049 | Element (2500/1200w) (left Front & Right Front) (Replaces: W10275049) |
|
Immediately | $ 314.23 | ||||
| 12 | W10422069 | Bottom, Heat Shield |
|
- | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 92.86 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 7.55 | |||||
| 15 | WPW10260060 | Board, Power Supply (Replaces: W10260060) |
|
Immediately | $ 317.35 | ||||
| 16 | W10340226 | Box, Appliance Manager |
|
- | |||||
| 17 | W10464574 | Foam, User Interface |
|
$ 82.70 | |||||
| 18 | W10340200 | Rail, Vertical |
|
- | |||||
| 19 | W10340199 | Rail, Horizontal |
|
- | |||||
| 20 | W10340228 | Support, User Interface |
|
- | |||||
| 21 | W10340206 | Rail, Vertical Short |
|
- | |||||
| 22 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 11A | W11171119 | Element (1200w) (left Rear & Right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 11B | W10823720 | Element (3000w) (center) (Replaces: W10187839) |
|
Immediately | $ 336.57 | ||||
| 1A | W10353375 | Guide, Use & Care |
|
- | |||||
| 1B | W10352654 | Sheet, Tech (english) |
|
- | |||||
| 1C | W10422899 | Sheet, Tech (french) |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1F | W10351318 | Instructions, Undercounter Install |
|
- | |||||
| 2A | W10566716 | Cooktop (stainless (includes Trim)) (Replaces: W10528445) |
|
$ 860.23 | |||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 12.05 | |||||
| NI | W10449083 | Harness, Main |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10324729 | Grommet, Wire |
|
$ 9.03 | |||||
| NI | W10340232 | Gasket |
|
$ 61.81 | |||||
| NI | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | ||||
| NI | W10291385 | Conduit |
|
$ 127.00 |
