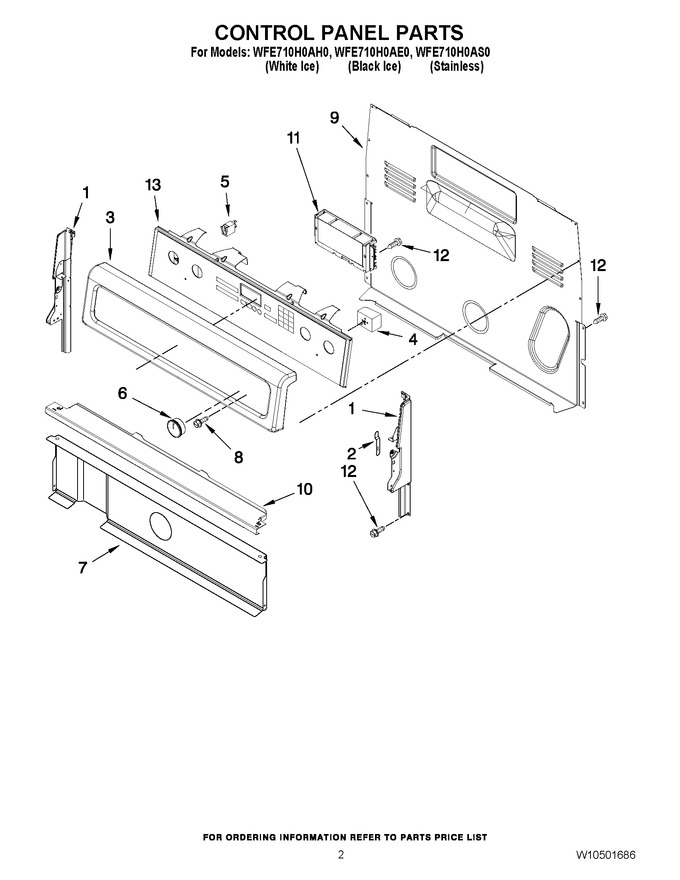

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Rack Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black Lh)   (Replaces: W10184437)				$ 153.83
1	W11219365		Endcap (white Lh)   (Replaces: W10184433)				$ 42.45
1	W11219665		Endcap (black Rh)   (Replaces: W10184438)				$ 45.17
1	W11219370		Endcap (white Rh)   (Replaces: W10184434)				$ 60.83
2	3196200		Clip, Spring				$ 10.45
3	WPW10318551		Panel, Backguard (black)   (Replaces: W10318551)				$ 272.41
3	WPW10318552		Panel, Backguard (white)   (Replaces: W10318552)			Immediately	$ 282.47
3	WPW10318550		Panel, Backguard (stainless)   (Replaces: W10318550)				$ 273.23
4	5500-287		Switch, Infinite (right Rear)   (Replaces: 3148951)			Immediately	$ 52.39
4	WPW10434452		Switch, Infinite (left & Right Front)   (Replaces: W10434452)			Immediately	$ 140.84
4	WPW10411934		Switch, Infinite (left Rear)   (Replaces: W10411934)			Immediately	$ 109.39
5	WP8523265		Light, Indicator   (Replaces: 8523265)			Immediately	$ 86.31
6	WPW10430806		Knob   (Replaces: W10430806)			Immediately	$ 26.11
7	W10134247		Shield, Heat			Immediately	$ 358.82
8	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
9	WP8272473		Cover, Upper   (Replaces: 8272473)				$ 219.04
10	W10525121		Brkt-mntg, Console   (Replaces: W10182322)				$ 98.85
11	WPW10340304		Control, Range (mrc)   (Replaces: W10340304)			Immediately	$ 443.56
12	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
13	W10347929		Overlay, Active (white Chromium)				$ 283.05
13	W10347930		Overlay, Active (stainless)			Immediately	$ 351.78
