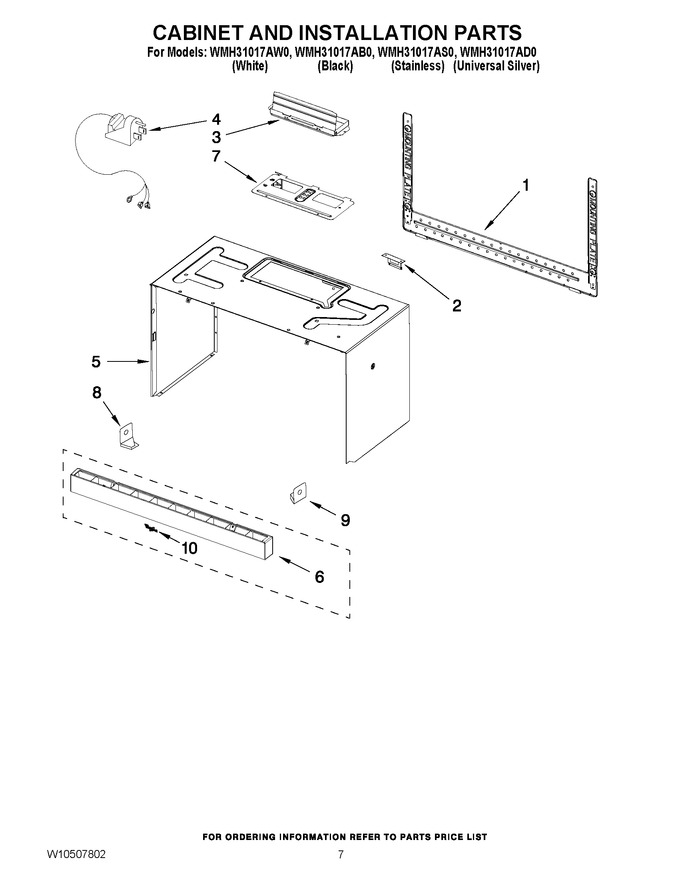

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10440498)			Immediately	$ 24.69
2	8206385		Support, Wire Clip				$ 37.20
3	W10843943		Damper Assembly   (Replaces: 8206442)			Immediately	$ 73.04
4	W10708076		Cord, Power   (Replaces: W10269470)				$ 21.56
5	WPW10462001		Case, Outer (black)   (Replaces: W10462001)				$ 297.51
5	WPW10462003		Case, Outer (white)   (Replaces: W10462003)				$ 291.92
6	WPW10468666		Grille, Vent (black)   (Replaces: W10468666)				$ 47.16
6	W10468664		Grille, Vent (white)				$ 39.51
6	W10468665		Grille, Vent (univ. Silver)				$ 49.97
6	WPW10468667		Grille, Vent (stainless)   (Replaces: W10468667)				$ 93.65
7	W10210832		Plate, Damper				$ 6.68
8	W11026306		Holder, Vent Left Side (white/ss/us)   (Replaces: W10393278)			Immediately	$ 7.55
8	W10830163		Holder, Vent Left Side (black)   (Replaces: W10406308)				$ 14.21
9	W10810989		Holder, Vent Right Side (black)   (Replaces: W10406307)				$ 10.22
9	W10703282		Holder, Vent Right Side (white/ss/us)   (Replaces: W10393276)				$ 11.00
10	W11178521		Nameplate, Whirlpool   (Replaces: W10481433)			Immediately	$ 63.13
NI	W10821385		Installation, Hardware   (Replaces: 8206614)			Immediately	$ 103.72
NI	W10190018		Template, Upper			Immediately	$ 7.55
NI	WP8169704		Screw, Top Mountng   (Replaces: 8169704)			Immediately	$ 13.35
NI	W10450407		Main Harness		Appelez-nous	-
NI	W10539840		Grounding Wire To Pcba   (Replaces: 8205696)				$ 25.08
NI	W10543253		Hdlmp/tt Wire Assy   (Replaces: W10470760)				$ 25.54
NI	W10471696		High Voltage		Appelez-nous	-
