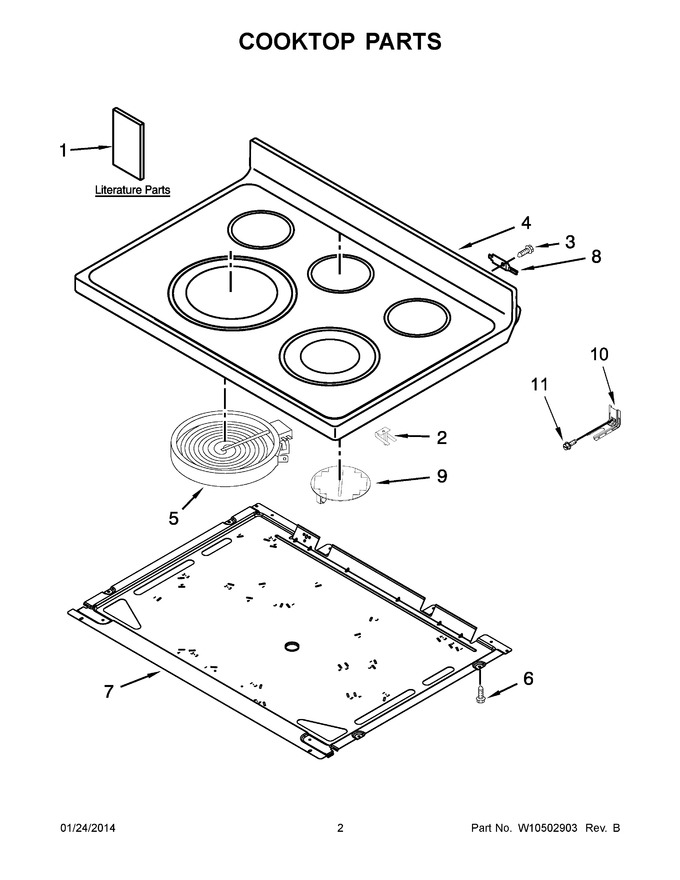

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Drawer And Rack Parts


06 - Door Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403812		Instructions, Installation		Appelez-nous	-
1	W10392933		Owners Manual		Appelez-nous	-
1	W10392960		Tech Sheet (english)		Appelez-nous	-
1	W10441633		Tech Sheet (french)		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1	W10400064		Guide, Quick Start (english)		Appelez-nous	-
1	W10400065		Guide, Quick Start (french)		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
3	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
4	W10134279		Cooktop (white)		Appelez-nous	-
4	W10472038		Cooktop (black)   (Replaces: W10410542)				$ 756.59
5	W11517959		Element (3000/1400w) (right Front)   (Replaces: W10275048)			Immediately	$ 134.44
5	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 145.32
5	W11171119		Element (1200w) (right Rear)   (Replaces: 8273994)			Immediately	$ 182.23
5	W10823727		Element (3000/1900w) (left Front)   (Replaces: W10162040)			Immediately	$ 342.63
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
7	W11728329		Pan, Radiant Element   (Replaces: W10106409)			Immediately	$ 143.49
8	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 13.18
9	W11047668		Element, Warm Zone (center Rear)   (Replaces: W10388247)				$ 132.95
10	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
11	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 30.72
