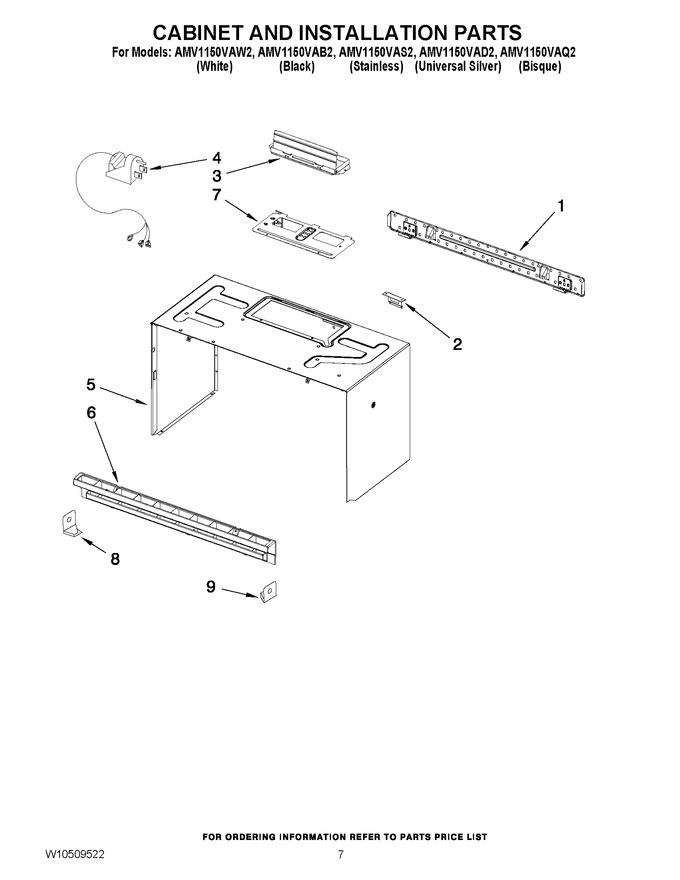

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10440498)			Immediately	$ 24.69
2	8206385		Support, Wire Clip				$ 37.20
3	W10843943		Damper Assembly   (Replaces: 8206442)			Immediately	$ 73.04
4	W10708076		Cord, Power   (Replaces: W10269470)				$ 21.56
5	WPW10462003		Case, Outer (white)   (Replaces: W10462003)				$ 291.92
5	WPW10462001		Case, Outer (black/univ. Silver)   (Replaces: W10462001)				$ 297.51
5	W10461999		Case, Outer (biscuit)		Appelez-nous	-
6	W10269471		Grille, Vent (white)			Immediately	$ 115.23
6	W10259625		Grille, Vent (black,universal Silver, Stainless)			Immediately	$ 74.78
6	W10139642		Grille, Vent (bisquit)		Appelez-nous	-
7	W10210832		Plate, Damper				$ 6.68
8	W11026306		Vent Holder-left   (Replaces: W10393278)			Immediately	$ 7.55
9	W10703282		Vent Holder-right   (Replaces: W10393276)				$ 11.00
NI	W10821385		Installation, Hardware   (Replaces: 8206614)			Immediately	$ 103.72
NI	W10190018		Template, Upper			Immediately	$ 7.55
NI	W10138802		Screw, Top Mountng				$ 11.43
NI	W10391772		Main Harness		Appelez-nous	-
NI	W10163438		Ground Wire		Appelez-nous	-
NI	W10539841		Hdlmp/tt Wire Assy   (Replaces: W10269479)				$ 20.98
NI	W10539842		Hv Trnsfmr Wr Assy   (Replaces: W10163436)				$ 16.70
NI	W10470168		Harness Wire, Ntc   (Replaces: W10163439)				$ 42.74
NI	W10346137		Harness Wire,titan		Appelez-nous	-
NI	W10539840		Ground Wire Assy   (Replaces: 8205696)				$ 25.08
