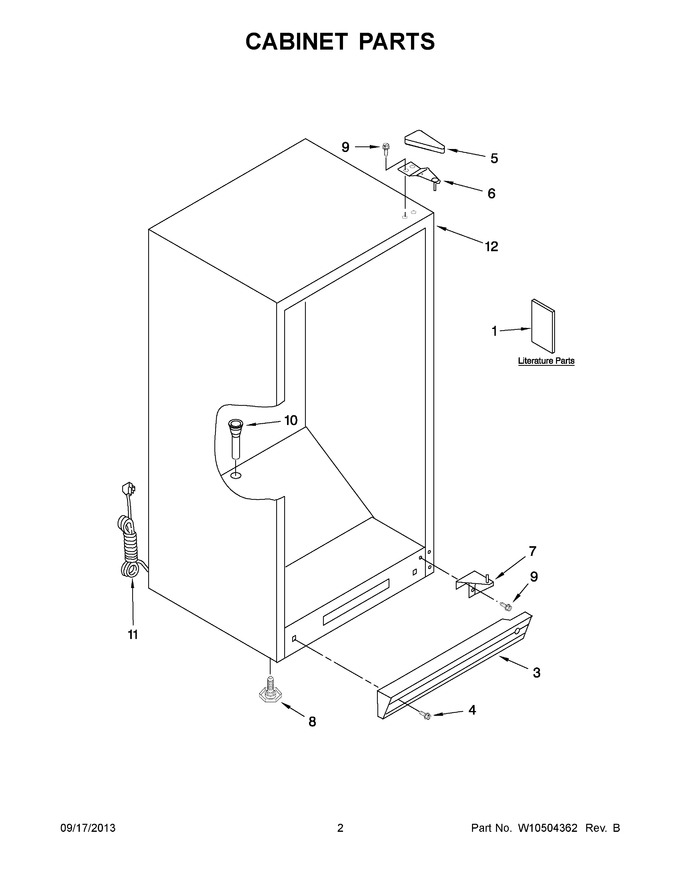

02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Parts Not Illustrated
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10404290 | Energy Guide |
|
- | |||||
| 1 | W10326798 | Owners Manual |
|
- | |||||
| 3 | WP4-60461-005 | Trim, Toe Kick (white) (Replaces: 4-60461-005) |
|
$ 105.73 | |||||
| 4 | WP489478 | Screw (Replaces: 3-24004-107) |
|
$ 7.36 | |||||
| 5 | 3-80838-003 | Cover, Hinge (white) |
|
$ 4.50 | |||||
| 6 | 2-81016-105 | Top Hinge (white) |
|
$ 38.92 | |||||
| 7 | 4-82693-002 | Hinge, Bottom |
|
$ 75.73 | |||||
| 8 | WP3-82710-001 | Leg, Leveler (black) (Replaces: 3-82710-001) |
|
Immediately | $ 18.29 | ||||
| 9 | WP8204624 | Screw (Replaces: 1-80271-103) |
|
$ 15.73 | |||||
| 10 | 3-60696-001 | Grommet, Drain |
|
$ 32.33 | |||||
| 11 | 4-82399-001 | Cord, Power |
|
$ 52.24 | |||||
| 12 | N/P | Cabinet (not A Serviceable Part) |
|
- |
