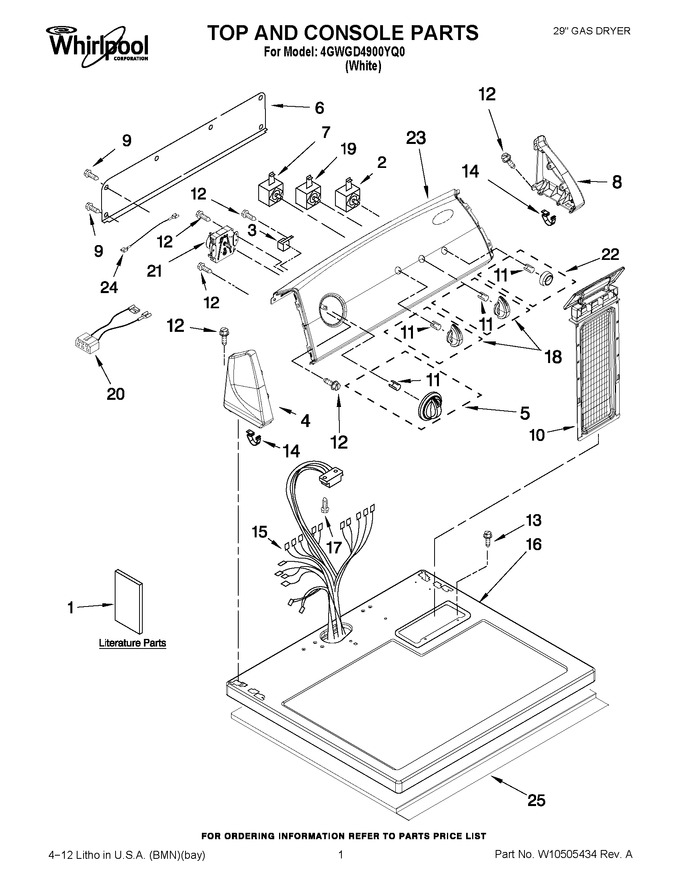

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10336852 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10454274		Instructions, Installation		Appelez-nous	-
1	W10454275		Use & Care Guide		Appelez-nous	-
1	W10396182		Wiring Diagram		Appelez-nous	-
2	WPW10112668		Switch, Push-to-start   (Replaces: W10112668)				$ 128.11
3	3952439		Buzzer, Mini		Appelez-nous	-
4	WP8565957		Cap, End (l.h.)   (Replaces: 8566035)				$ 64.76
5	W10034750		Knob, Timer Assembly				$ 28.27
6	W10103406		Panel, Rear Console				$ 135.31
7	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
8	WP8565954		Cap, End (r.h.)   (Replaces: 8566032)				$ 65.84
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Screen, Lint   (Replaces: 8557857)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
15	W10450284		Harness, Wiring		Appelez-nous	-
16	WP8563663		Top   (Replaces: 8559800)			Immediately	$ 349.25
17	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
18	W10034380		Knob, Control				$ 25.06
19	WP3405156		Switch, Rotary (twist Mount)   (Replaces: 3405156)				$ 152.79
20	3397695		Wire, Jumper				$ 90.72
21	WP3979618		Timer Assembly (60 Hz.)   (Replaces: 3979618)				$ 385.28
22	WPW10034790		Knob, Push-to-start   (Replaces: W10034790)				$ 57.81
23	W10434962		Panel & Console Assembly		Appelez-nous	-
24	W10113080		Jumper, Buzzer		Appelez-nous	-
25	W10123956		Dampening, Sound		Appelez-nous	-
