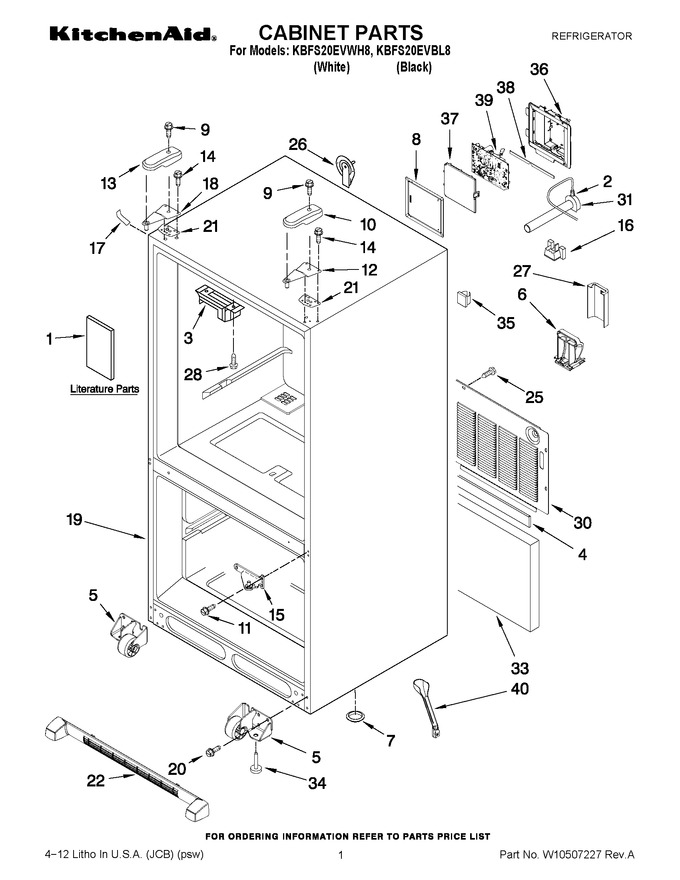

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10366208 | Use & Care Guide |
|
- | |||||
| 1 | W10480706 | Tech Sheet |
|
- | |||||
| 1 | W10208326 | Energy Guide |
|
- | |||||
| 2 | WPM0114003 | Clip (Replaces: M0114003) |
|
$ 11.60 | |||||
| 3 | WP67003405 | Plate, Block (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | W11820444 | Roller Foot Assembly (lh) (Replaces: W10275850) |
|
Immediately | $ 37.35 | ||||
| 5 | W11820445 | Roller Foot Assembly (rh) (Replaces: W10275849) |
|
Immediately | $ 37.35 | ||||
| 6 | 12831101 | Sweep, Dual Tube |
|
$ 13.03 | |||||
| 7 | A3076901 | Plug, Bottom |
|
$ 5.70 | |||||
| 8 | 12961602 | Cover, Control Box |
|
$ 116.19 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | 12629801W | Cover, Right Hinge (white) |
|
$ 24.68 | |||||
| 10 | 12629801B | Cover, Right Hinge (black) |
|
$ 25.13 | |||||
| 11 | W11573362 | Screw (Replaces: W10339086) |
|
$ 14.72 | |||||
| 12 | 12626910ED | Hinge, Top Right |
|
$ 124.87 | |||||
| 13 | W10217484 | Cover, Left Hinge (white) |
|
$ 33.55 | |||||
| 13 | W10217485 | Cover, Left Hinge (black) |
|
$ 22.72 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | 12655103ED | Hinge, Center (2) (black) |
|
$ 89.26 | |||||
| 15 | 12655102AP | Hinge, Center (2) (white) (Replaces: 12655102WD) |
|
$ 150.87 | |||||
| 16 | 12777701 | Block, Filter |
|
$ 7.17 | |||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 22.90 | |||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 18 | 12626911ED | Hinge, Top Left |
|
$ 89.05 | |||||
| 19 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 20 | 67006564 | Screw (8) (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | 12579702 | Shim, Hinge |
|
- | |||||
| 22 | WPW10534154 | Grille Assembly (includes Clips) (white) (Replaces: W10244559N) |
|
$ 153.66 | |||||
| 22 | WPW10534153 | Grille Assembly (includes Clips) (black) (Replaces: W10244561N) |
|
$ 154.57 | |||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 26 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 27 | W10208593 | Guard, Water Valve |
|
$ 15.71 | |||||
| 28 | WP7101P126-60 | Screw (Replaces: 12990303) |
|
Immediately | $ 8.36 | ||||
| 30 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 207.99 | |||||
| 31 | W11176463 | Elbow, Fill Tube (Replaces: 10463203) |
|
Immediately | $ 119.86 | ||||
| 33 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 34 | WPW10141622 | Foot Brake (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 35 | WPM0104106 | Clip, Tube (Replaces: M0104106) |
|
$ 8.17 | |||||
| 36 | W10257665 | Box, Hv Control |
|
$ 50.84 | |||||
| 37 | W11226688 | Lid, Hv Box (Replaces: 12957702SP) |
|
$ 85.16 | |||||
| 38 | 12957801SP | Gasket, Hv Box |
|
- | |||||
| 39 | WPW10317076 | Board, Control (hv, Apollo) (Replaces: W10317076) |
|
Immediately | $ 412.84 | ||||
| 40 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 |
