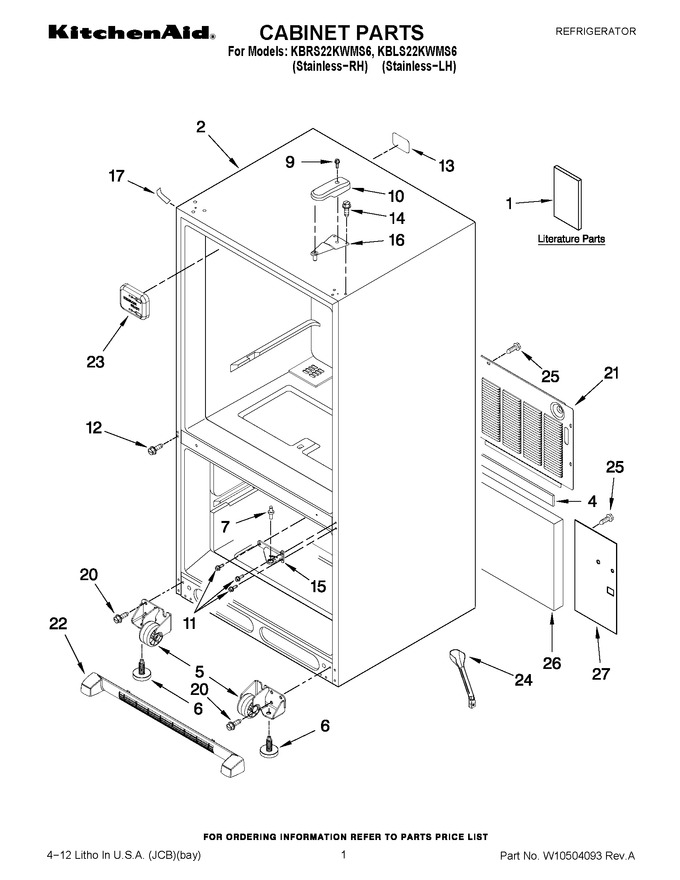

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10366210 | Use & Care Guide |
|
- | |||||
| 1 | W10476805 | Tech Sheet |
|
- | |||||
| 1 | W10297638 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | W11820445 | Roller Foot Assembly (right) (Replaces: W10275849) |
|
Immediately | $ 37.35 | ||||
| 5 | W11820444 | Roller Foot Assembly (left) (Replaces: W10275850) |
|
Immediately | $ 37.35 | ||||
| 6 | WPW10141622 | Foot Brake (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 8.78 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | W11106366 | Cover, Right Hinge (apollo Grey) (Replaces: 12477601AP) |
|
$ 75.82 | |||||
| 11 | W11573362 | Screw (Replaces: W10339086) |
|
$ 14.72 | |||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 13 | W11685757 | Label, Fill Tube (Replaces: 12249902) |
|
$ 7.41 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W11689473 | Hinge, Center (2) (apollo Grey) (Replaces: 12607103AP) |
|
$ 69.79 | |||||
| 16 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 47.13 | ||||
| 17 | WP12587703AP | Cover, Corner (apollo Grey) (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 20 | 67006564 | Screw (8) (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | WPW10210979 | Cover, Unit (Replaces: W10210979) |
|
$ 206.23 | |||||
| 22 | WPW10534160 | Grille Assembly (includes Clips) (apollo Grey) (Replaces: W10236194N) |
|
Immediately | $ 72.60 | ||||
| 23 | WP67001098 | Cover, Fill Tube (Replaces: 12477501) |
|
$ 8.43 | |||||
| 24 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 26 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 27 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 21.36 |
