View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover

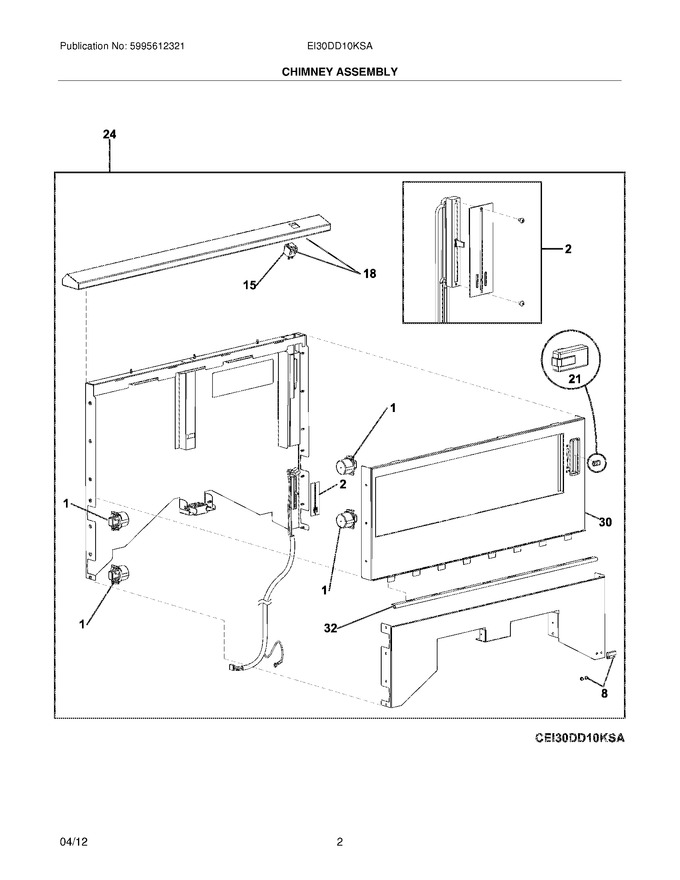

03 - Chimney Assembly
05 - Body/motor Parts
06 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304487428 | Guide Assy,plunger ,w/spring |
|
$ 464.24 | |||||
| 8 | 5304487435 | Magnet Kit,reed ,w/instructions ,& Screws |
|
- | |||||
| 21 | 5304487526 | Knob,fan Control |
|
- | |||||
| 30 | 5304487457 | Panel,chimney ,30`` |
|
- | |||||
| 32 | 5304487459 | Seal Kit,chimney ,30`` |
|
- | |||||
| F15 | 5304487440 | Switch,lift |
|
- | |||||
| F18 | 5304487443 | Trim Assy,top ,30`` ,w/switch |
|
- | |||||
| F2 | 5304487429 | Switch Kit,blower ,w/harness ,& Screws |
|
- | |||||
| F24 | 5304487450 | Chimney Assy,complete ,30`` |
|
- |
