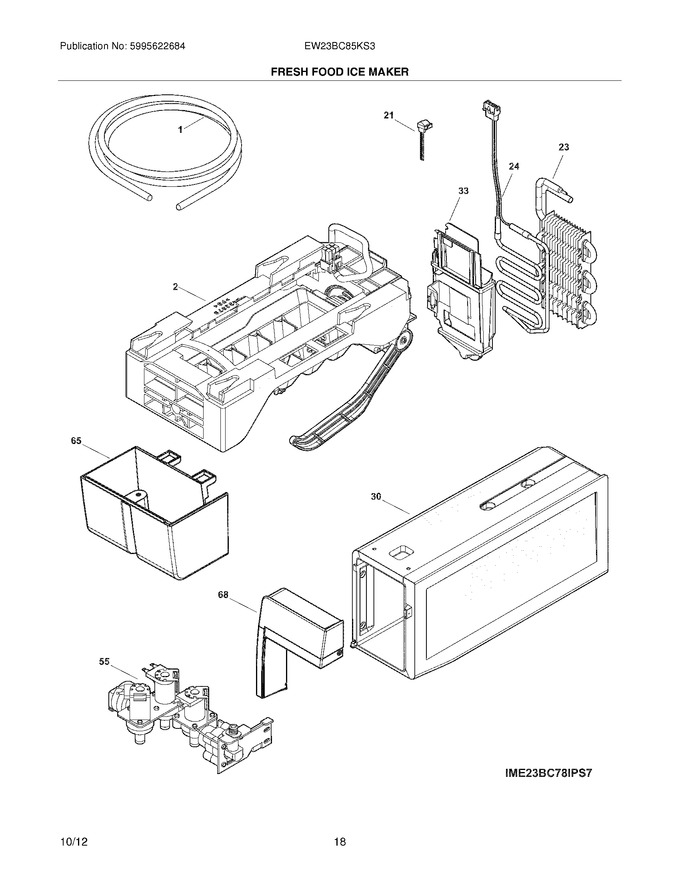

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976435 | Tube-water Inlet,5/16 - 59`` ,yellow ,cd |
|
$ 22.84 | |||||
| 30 | 242093501 | Cover,icmkr & Bucket (Replaces: 242142202) |
|
$ 187.43 | |||||
| 33 | 242094401 | Housing-evaporator |
|
$ 6.39 | |||||
| 65 | 242145902 | Cover-wiring |
|
- | |||||
| 68 | 242095002 | Cover,-front ,bucket Trim |
|
$ 105.36 | |||||
| F2 | 243297613 | Ice Maker,complete ,115 V (Replaces: 243297603) |
|
Immediately | $ 130.73 | ||||
| F21 | 5303918568 | Thermostat-defrost,defrost ,icemaker Evap |
|
$ 101.59 | |||||
| F23 | 242094603 | Evaporator,ice Maker |
|
$ 153.41 | |||||
| F24 | 242094802 | Heater-defrost |
|
Immediately | $ 126.58 | ||||
| F55 | 242253002 | Valve-water,4 Position ,115 V (Replaces: 242102201) |
|
Immediately | $ 271.94 | ||||
| FNI | 5303918446 | Heat Exchanger,icemaker |
|
$ 446.51 | |||||
| NI | 5303918784 | Gasket,housing Funnel ,2.69x 3.05x .25 ,top,w/hole (Replaces: 242146001) |
|
Immediately | $ 136.39 | ||||
| NI | 5303918784 | Gasket (Replaces: 242095407) |
|
Immediately | $ 136.39 | ||||
| NI | 242095406 | Gasket |
|
Immediately | $ 20.19 | ||||
| NI | 218976425 | Tube-water Inlet,51.00`` ,brown/tan |
|
$ 112.61 | |||||
| NI | 242095402 | Gasket-evap Housing,.250x.250x3.300 |
|
- | |||||
| NI | 241920106 | Tube-water,assembly ,5/16 - 54`` ,green ,ice Maker Fill,w/extension (Replaces: 241920104) |
|
Immediately | $ 67.41 | ||||
| NI | 5303918784 | Gasket-evap Housing,.250x.250x5.250 (Replaces: 242095404) |
|
Immediately | $ 136.39 | ||||
| NI | 242095405 | Gasket-evap Housing,.250x.250x6.600 |
|
- | |||||
| NI | 242095408 | Gasket-evap Housing,.250x1.00x6.600 |
|
- | |||||
| NI | 242095425 | Gasket-evap Housing (Replaces: 242095409) |
|
$ 11.46 | |||||
| NI | 218709101 | Screw,hex Head ,10-32 X 0.500 |
|
$ 7.09 | |||||
| NI | 240363602 | Screw-shoulder |
|
$ 15.17 | |||||
| NI | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 19.01 | ||||
| NI | 5303918484 | Chute-ice (Replaces: 242105401) |
|
$ 33.86 | |||||
| NI | 241641502 | Screw |
|
$ 9.45 | |||||
| NI | 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NI | 240396801 | Clamp,tube/wiring ,nylon ,black/natural |
|
$ 21.26 | |||||
| NI | 5303918571 | Tube-water,ice Mold Fill ,black ,extension (Replaces: 241844403) |
|
$ 182.49 | |||||
| NI | 242095403 | Gasket-evap Housing,.250x.250x7.750 |
|
- | |||||
| NI | 241964705 | Tube-water,1/4 - 24`` ,green |
|
$ 10.55 | |||||
| NI | 241965906 | Tube-water,5/16 - 67`` ,natural |
|
Immediately | $ 26.78 | ||||
| NI | 242169404 | Tube-water,ice Mold Fill ,1/4 - 44`` ,blue,w/extension |
|
- | |||||
| NI | 218976428 | Tube-water,5/16 - 51`` ,natural |
|
$ 18.27 | |||||
| NI | 241695906 | Screw,10-16ab X 0.50 |
|
$ 21.26 | |||||
| NI | 5303918784 | Gasket,.4x .75x 16.00`` (Replaces: 242124801) |
|
Immediately | $ 136.39 | ||||
| NI | 5303918784 | Gasket,.9x .75x 10.75`` (Replaces: 242124802) |
|
Immediately | $ 136.39 |
