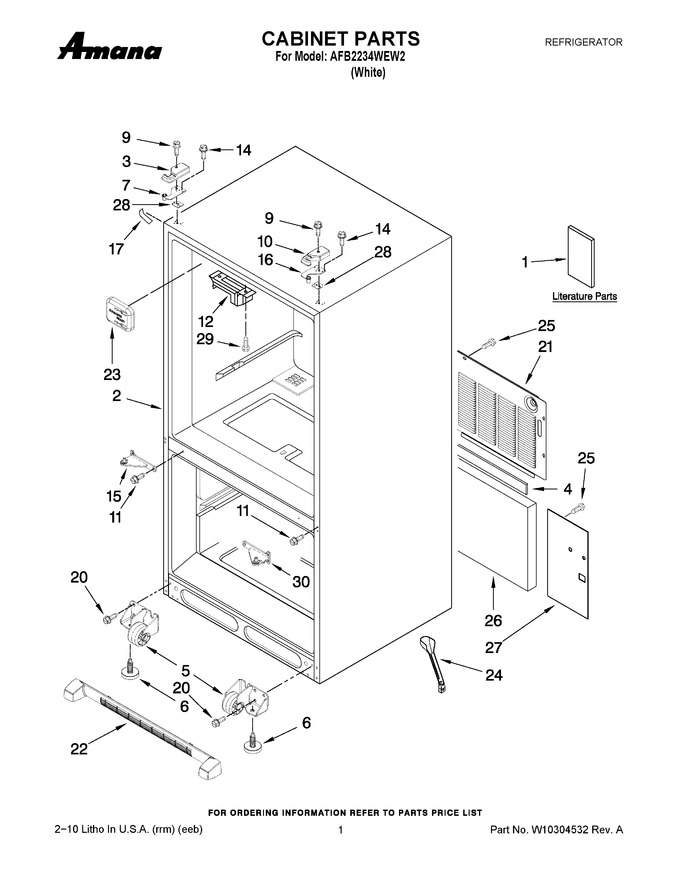

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10175445 | Use & Care Guide |
|
- | |||||
| 1 | W10279337 | Tech Sheet |
|
- | |||||
| 1 | W10260550 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WPW10337634 | Cover, Left Hinge (white) (Replaces: 12962301W) |
|
Immediately | $ 23.54 | ||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | W11820445 | Roller Assy. (2) (right) (Replaces: W10275849) |
|
Immediately | $ 37.35 | ||||
| 5 | W11820444 | Roller Assy. (2) (left) (Replaces: W10275850) |
|
Immediately | $ 37.35 | ||||
| 6 | WPW10141622 | Foot Brake (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 7 | W11592375 | Hinge, Left Top (Replaces: 12963204ED) |
|
$ 31.92 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | 67005958 | Cover, Right Hinge (white) (Replaces: 12962302W) |
|
$ 21.57 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 8.43 | ||||
| 12 | WP67003405 | Block, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 14 | WP489349 | Screw (3) (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W10918113 | Hinge, Center (lt) (white) (Replaces: 13000001WD) |
|
$ 97.92 | |||||
| 16 | W11592374 | Hinge, Right Top (Replaces: 12963205ED) |
|
Immediately | $ 31.90 | ||||
| 17 | 12587703W | Cover, Corner White |
|
$ 22.90 | |||||
| 20 | 67006564 | Screw (4) (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | WPW10210979 | Cover, Unit (Replaces: W10210979) |
|
$ 206.23 | |||||
| 22 | WPW10534161 | Grille, Toe (white) (Replaces: W10236195) |
|
$ 147.09 | |||||
| 23 | WP67001098 | Cover-fill Tube (Replaces: 12477501) |
|
$ 8.43 | |||||
| 24 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 26 | 12820505 | Fiber, Acoustic |
|
$ 71.70 | |||||
| 27 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 21.36 | |||||
| 28 | 12999502 | Shim, Top Hinge (right) |
|
$ 100.60 | |||||
| 28 | 12999501 | Shim, Top Hinge (left) |
|
$ 99.53 | |||||
| 29 | WP7101P126-60 | Screw, Block (Replaces: 12990303) |
|
Immediately | $ 8.36 | ||||
| 30 | 13000002WD | Hinge, Center (rt) (white) |
|
$ 160.99 |
