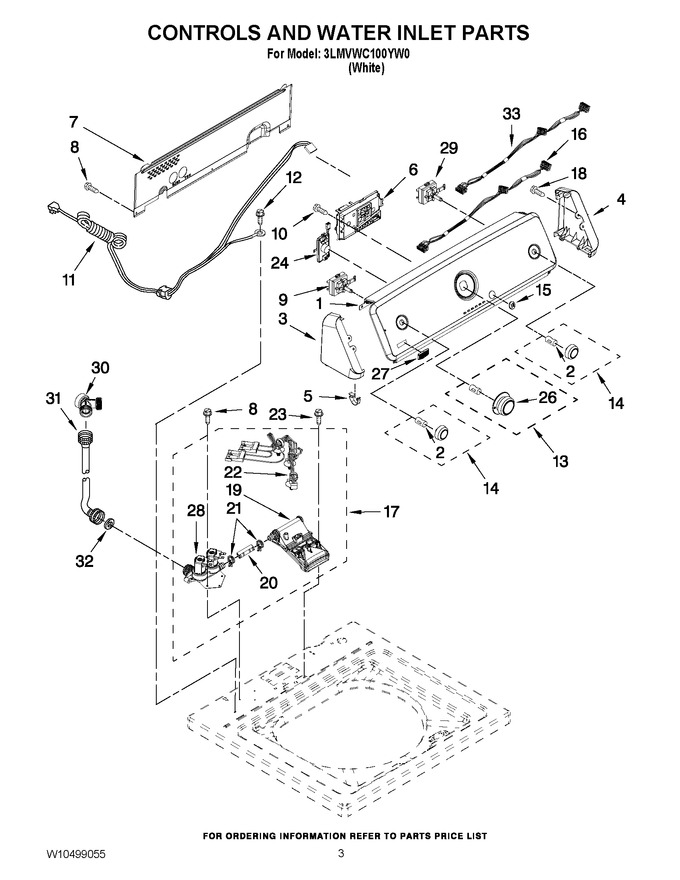

02 - Controls And Water Inlet Parts
03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10464666 | Panel, Console |
|
- | |||||
| 2 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 3 | W10193826 | Cap, End (l.h.) (includes Item 5) |
|
- | |||||
| 4 | W10193823 | Cap, End (r.h.) (includes Item 5) |
|
- | |||||
| 5 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W10723438 | Control Unit Assembly, Machine & Motor (Replaces: W10480675) |
|
$ 301.67 | |||||
| 7 | WPW10420985 | Panel, Console Rear Cover (Replaces: W10420985) |
|
$ 263.85 | |||||
| 8 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10285517 | Switch, Water Level (Replaces: W10285517) |
|
$ 135.86 | |||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 11 | W10446856 | Cord, Power |
|
- | |||||
| 12 | W10846509 | Screw, Power (cord Ground) (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | WPW10317454 | Knob, Timer (Replaces: W10317454) |
|
$ 63.47 | |||||
| 14 | WPW10317455 | Knob, Control (Replaces: W10317455) |
|
$ 63.33 | |||||
| 15 | WPW10251309 | Push Button, Start (Replaces: W10251309) |
|
Immediately | $ 76.00 | ||||
| 16 | W10481152 | Harness, Upper (water Level) |
|
- | |||||
| 17 | W10360889 | Inlet Assembly, Water |
|
- | |||||
| 18 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 14.76 | ||||
| 19 | WPW10441423 | Vacuum Break (Replaces: W10441423) |
|
$ 90.33 | |||||
| 20 | W10238347 | Hose, Vacuum Break |
|
$ 25.86 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: W10117298) |
|
Immediately | $ 8.82 | ||||
| 22 | W10474662 | Harness, Valve |
|
- | |||||
| 23 | WP8281163 | Screw (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 24 | W10522615 | Filter, Line Assembly (Replaces: W10434306) |
|
- | |||||
| 26 | WP688805 | Clip, Knob (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 27 | W10323734 | Badge |
|
$ 63.95 | |||||
| 28 | W10356260 | Valve, Water Mixing |
|
- | |||||
| 29 | WPW10285512 | Switch, Rotary Encoder (Replaces: W10285512) |
|
Immediately | $ 190.47 | ||||
| 30 | WPW10269488 | Connector, Y Hose (Replaces: W10269488) |
|
$ 89.64 | |||||
| 31 | WPW10615831 | Hose, Water Inlet (hot Water) (Replaces: 3949382) |
|
$ 103.65 | |||||
| 31 | WPW10615809 | Hose, Water Inlet (cold Water) (Replaces: 3949383) |
|
$ 104.71 | |||||
| 32 | WP3357450 | Washer, Export Hose Adapter (Replaces: 3357450) |
|
$ 11.56 | |||||
| 33 | W10480948 | Harness, Upper (temperature) |
|
- |
