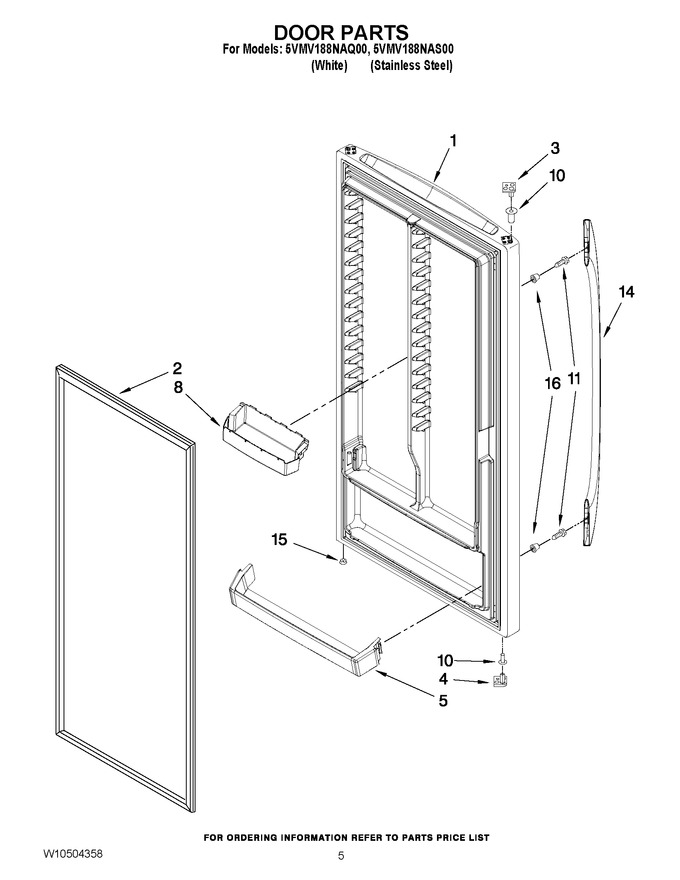

03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4-82827-057		Door Assembly (includes Interior Door Liner) (white)		Appelez-nous	-
1	4-82827-060		Door Assembly (includes Interior Door Liner) (stainless Steel)		Appelez-nous	-
2	4-65151-010		Gasket (black)				$ 196.81
2	WP4-65151-002		Gasket (white)   (Replaces: 4-65151-002)				$ 377.13
3	2-81124-004		Stop, Door (top) (black)				$ 53.64
3	2-81124-001		Stop, Door (top) (natural)				$ 31.15
4	2-81125-001		Stop, Door (bottom)		Appelez-nous	-
5	4-65449-001		Rail, Door (lower)				$ 95.53
8	4-65454-001		Bin, Door				$ 36.79
10	3-60199-001		Bushing (white)		Appelez-nous	-
10	3-60199-004		Bushing (black)				$ 11.91
11	W11772394		Screw   (Replaces: 3-24004-091)			Immediately	$ 13.22
14	3-82596-003		Handle (satina)				$ 314.03
14	3-82596-002		Handle (white)				$ 265.43
15	3-24898-007		Vent Plug				$ 11.34
16	WPW10170540		Stud, Handle   (Replaces: 2-82532-001)			Immediately	$ 8.51
