SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Door Parts

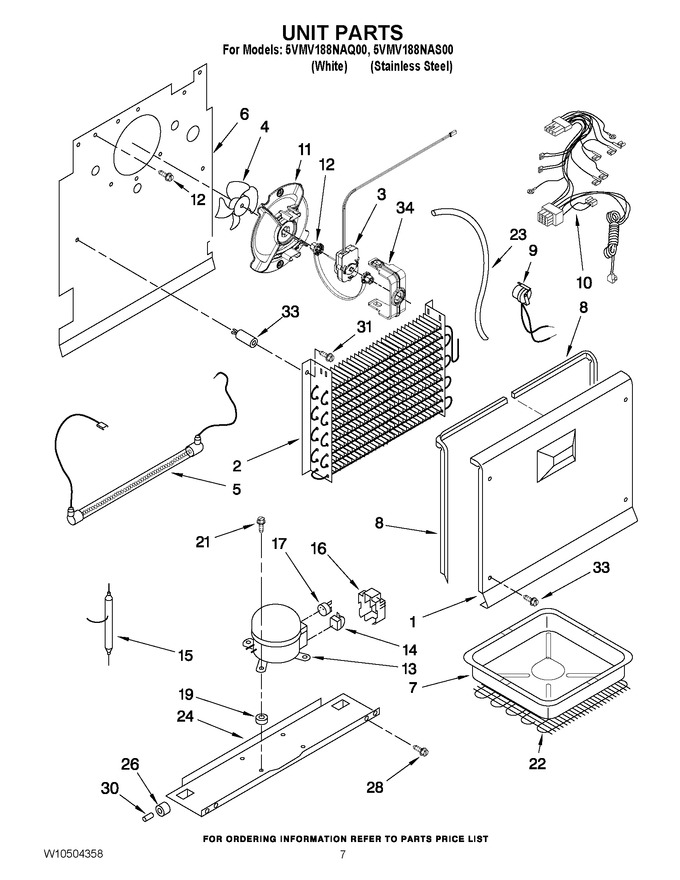

04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10452370		Cover, Evaporator				$ 237.73
2	W10455861		Evaporator				$ 257.12
3	WPW10312014		Motor, Fan   (Replaces: W10312014)				$ 266.60
4	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
5	W10426849		Heater, Defrost				$ 144.06
6	W10452115		Plate, Evaporator Mount				$ 263.14
7	4-82749-001		Drain Pan		Appelez-nous	-
8	4390663		Gasket, Cover Evaporator (right)   (Replaces: 3-60180-001)				$ 250.95
8	3-60180-002		Gasket, Cover Evaporator (left)				$ 29.09
9	W10491892		Bi-metal Defrost				$ 120.70
10	W10415853		Harness, Wiring (with Power Cord)		Appelez-nous	-
11	W10457575		Shroud, Evaporator				$ 29.98
12	W11690160		Grommet-fan Motor   (Replaces: W10150583)				$ 8.31
13	W10183407		Compressor   (Replaces: W10447590)				$ 435.61
14	2-35154-011		Relay		Appelez-nous	-
15	W10843121		Drier   (Replaces: W10459086)			Immediately	$ 57.13
16	WP61002138		Cover   (Replaces: W10462677)				$ 9.21
17	61004883		Overload   (Replaces: 2-34286-027)				$ 50.28
19	WP2163786		Compressor, Grommet   (Replaces: 13146462)				$ 8.36
21	8210220		Screw, Compressor   (Replaces: 2-82082-001)		Appelez-nous	-
22	4-82683-001		Condenser				$ 295.62
23	W10474982		Heat, Exchanger		Appelez-nous	-
24	W10470129		Pan, Compressor				$ 63.80
26	3-60315-001		Roller				$ 32.89
28	WP3-24838-048		Screw   (Replaces: 3-24838-048)				$ 8.33
30	1-60316-001		Axle				$ 13.99
31	WP489491		Screw   (Replaces: 3-24004-079)				$ 7.30
33	1-80275-101		Grommet		Appelez-nous	-
34	13058002		Clip, Evap. Motor				$ 12.66
NI	N/P		Refrigerant Charge (5.8 Oz. (r-134a))		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
