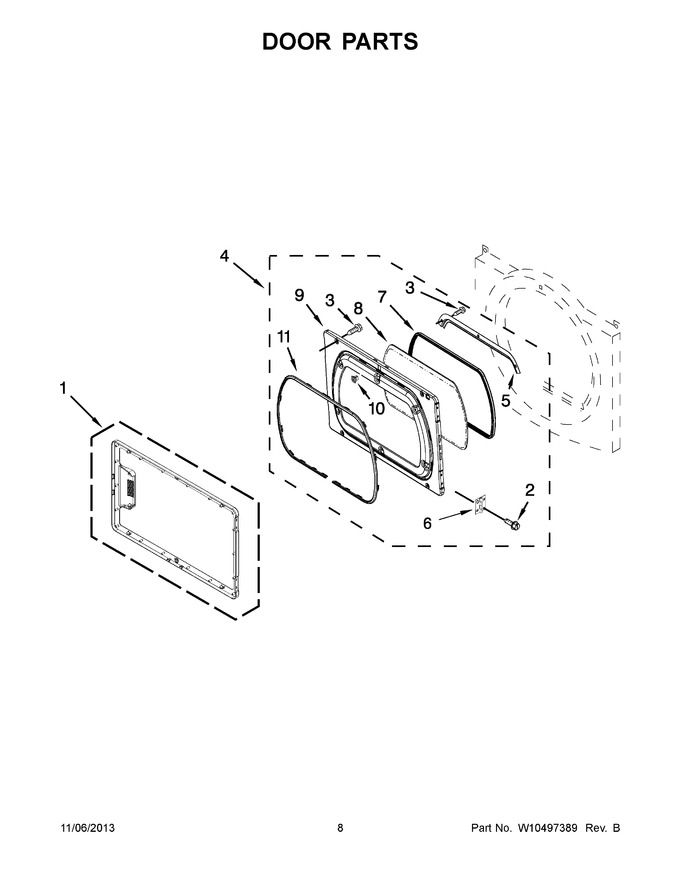

05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10461891		Outer Door Assembly (cosmetallic)				$ 358.34
2	WP488627		Screw   (Replaces: 342055)				$ 8.11
3	WP3373329		Screw   (Replaces: 3393258)				$ 8.52
4	W11652037		Assembly, Inner Door   (Replaces: W10513690)				$ 208.90
5	W10822054		Retainer, Window   (Replaces: 8519354)			Immediately	$ 18.01
6	WPW10279703		Hinge, Spring Assembly (silver)   (Replaces: W10279703)				$ 75.83
7	W11676508		Seal, Window   (Replaces: W10284122)				$ 28.37
8	WPW10284121		Glass, Door   (Replaces: W10284121)				$ 263.61
9	W10822056		Door, Inner   (Replaces: W10470571)				$ 219.14
10	279570		Assembly, Door Catch   (Replaces: 690081)			Immediately	$ 8.89
11	WPW10354795		Seal, Door   (Replaces: W10354795)				$ 130.12
