01 - Cover Sheet
02 - Top And Console Parts

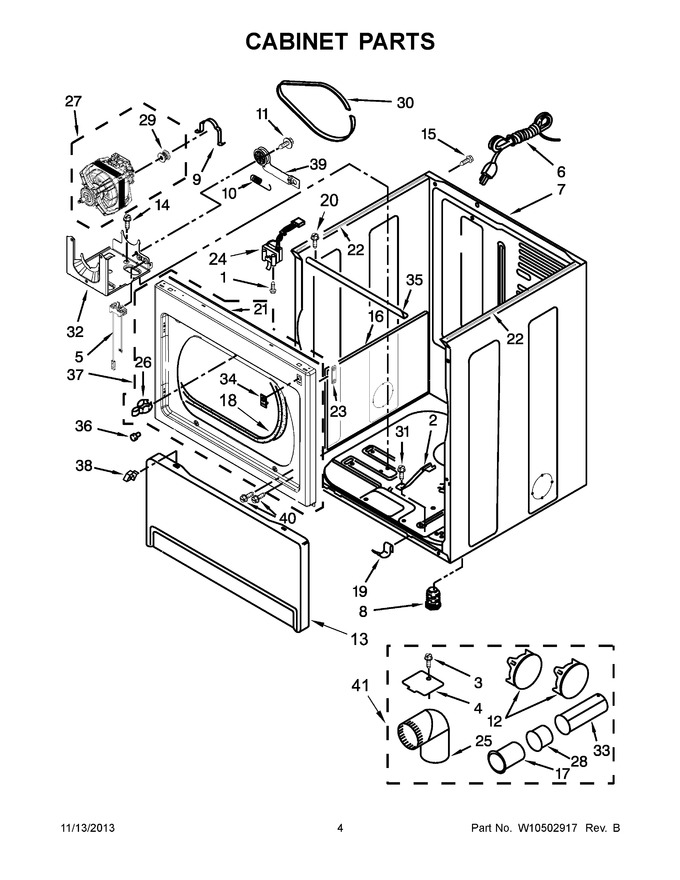

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - W10293911 Burner Assembly
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 2 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 3 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 8.28 | ||||
| 4 | WPW10354249 | Plate, Cover (Replaces: W10354249) |
|
$ 9.41 | |||||
| 5 | W10847984 | Switch, Broken Belt (Replaces: W10411936) |
|
Immediately | $ 26.90 | ||||
| 6 | W11222083 | Cord, Power (Replaces: W10440460) |
|
$ 126.62 | |||||
| 7 | W10459657 | Cabinet (cosmetallic) |
|
- | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | WPW10404617 | Plug, Multivent (midnight Grey) (Replaces: W10404617) |
|
$ 75.58 | |||||
| 13 | W10461893 | Toe Panel (cosmetallic) |
|
- | |||||
| 14 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 15 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 16 | W10123956 | Panel, Dampening |
|
- | |||||
| 17 | WP8563747 | Pipe, Exhaust (medium) (Replaces: 8563747) |
|
$ 95.95 | |||||
| 18 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 19 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 8.14 | |||||
| 20 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 21 | W10312811 | Seal, Spill Guard |
|
$ 67.73 | |||||
| 22 | W10336128 | Seal, Foam |
|
$ 15.08 | |||||
| 23 | W10304147 | Plug-hinge Screw (silver) |
|
- | |||||
| 24 | WP3406107 | Switch, Door (Replaces: 3406107) |
|
Immediately | $ 31.20 | ||||
| 25 | WPW10416072 | Elbow (Replaces: 49026) |
|
$ 28.16 | |||||
| 26 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 20.99 | ||||
| 27 | WPW10508324 | Assembly, Motor (Replaces: W10396038) |
|
Immediately | $ 342.91 | ||||
| 28 | WPW10331278 | Pipe, Exhaust (short) (Replaces: W10331278) |
|
$ 82.90 | |||||
| 29 | W10837625 | Pulley, Motor (Replaces: W10460106) |
|
Immediately | $ 12.77 | ||||
| 30 | WPW10112954 | Belt, Drive (Replaces: W10112954) |
|
Immediately | $ 105.32 | ||||
| 31 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 32 | W11481730 | Bracket, Motor Mounting (Replaces: W10242878) |
|
Immediately | $ 94.84 | ||||
| 33 | WP8563749 | Pipe, Exhaust (long) (Replaces: 8563749) |
|
$ 93.24 | |||||
| 34 | W10097055 | Plug, Strike |
|
- | |||||
| 35 | W10236068 | Bracket, Cabinet |
|
$ 24.47 | |||||
| 36 | 693152 | Bumper |
|
$ 11.51 | |||||
| 37 | W10461887 | Front Panel (cosmetallic) |
|
- | |||||
| 38 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 39 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 35.78 | ||||
| 40 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 41 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey) (Replaces: W10186596) |
|
Immediately | $ 76.65 | ||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 |
