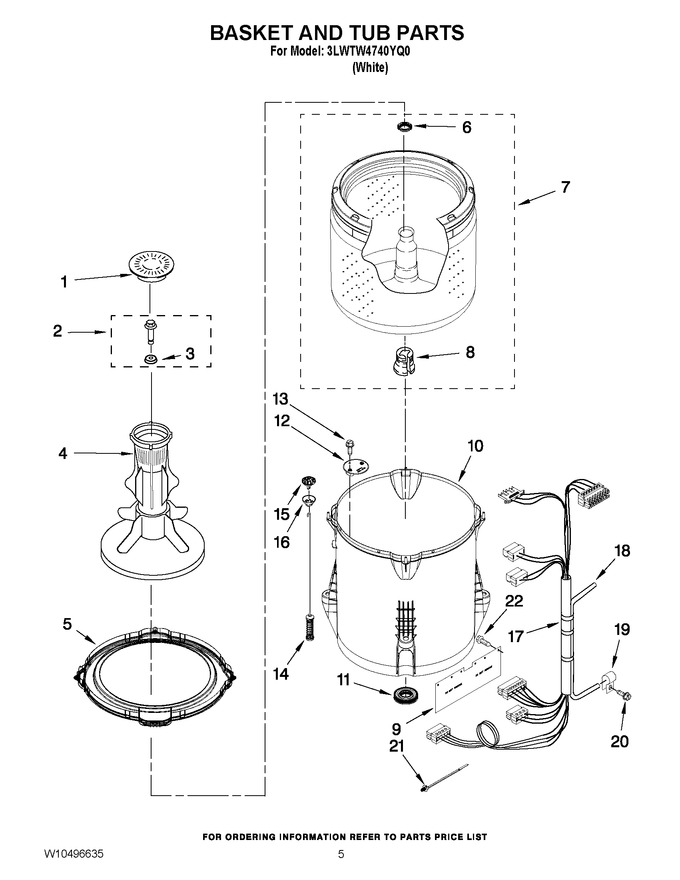

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3352483		Cap, Agitator   (Replaces: 3352483)				$ 59.19
2	W10772621		Screw & Washer Assembly   (Replaces: W10003790)			Immediately	$ 5.24
3	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 11.09
4	WPW10131112		Agitator   (Replaces: 63377)			Immediately	$ 124.13
5	WPW10215108		Ring, Tub   (Replaces: W10215108)				$ 202.17
6	WP21366		Nut, Spanner   (Replaces: 21366)			Immediately	$ 8.89
7	W10738339		Basket Assembly   (Replaces: W10389330)				$ 265.85
8	WP389140		Block, Basket Drive   (Replaces: 389140)			Immediately	$ 27.49
9	W10339098		Shield, Splash				$ 24.62
10	W10371566		Tub (includes Item 11)   (Replaces: W10238320)				$ 339.37
11	W10324647		Seal, Tub   (Replaces: W10006371)			Immediately	$ 93.50
12	WPW10215093		Filter, Drain Pump   (Replaces: W10215093)				$ 62.15
13	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 7.82
14	W10780048		Damper Assembly, Tub Suspension (set Of 4-includes Items 15 & 16)   (Replaces: W10257088)			Immediately	$ 88.83
15	W10405423		Ball, Suspension (set Of 4 - Includes Item 16)		Appelez-nous	-
16	W10256551		Bushing, Suspension (set Of 4 - Includes Item 15)		Appelez-nous	-
17	WPW10422641		Harness, Lower (includes Items 18 & 21)   (Replaces: W10422641)				$ 242.84
18	WP353244		Hose, Pressure Switch   (Replaces: W10297436)			Immediately	$ 59.93
19	W10005430		Clamp, Pressure Hose Retainer			Immediately	$ 9.08
20	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 8.00
21	WPW10298887		Cable Tie   (Replaces: W10298887)				$ 7.60
22	W10429200		Retainer, Push In		Appelez-nous	-
