SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)

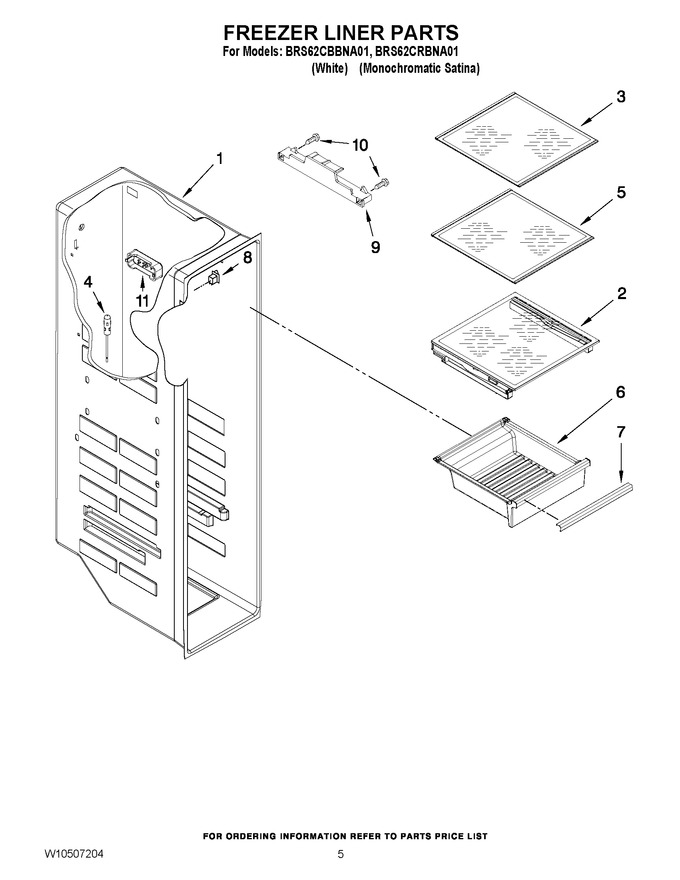

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	W10260977		Cover Assy		Appelez-nous	-
3	WPW10238485		Shelf, Glass Upper   (Replaces: W10238485)				$ 159.82
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 33.60
5	WPW10269146		Shelf, Glass Lower   (Replaces: W10269146)				$ 158.82
6	W11106313		Pan, Freezer Upper Also Order 7   (Replaces: W10260983)				$ 123.17
7	W11236850		Trim, Handle   (Replaces: W10260986)		Appelez-nous	-
8	W11457217		Switch, Rocker Arm   (Replaces: 2321285)				$ 40.09
9	W10294289		Slide, Container		Appelez-nous	-
10	718257		Screw   (Replaces: 489100)		Appelez-nous	-
11	W10425253		Cover, Thermistor		Appelez-nous	-
