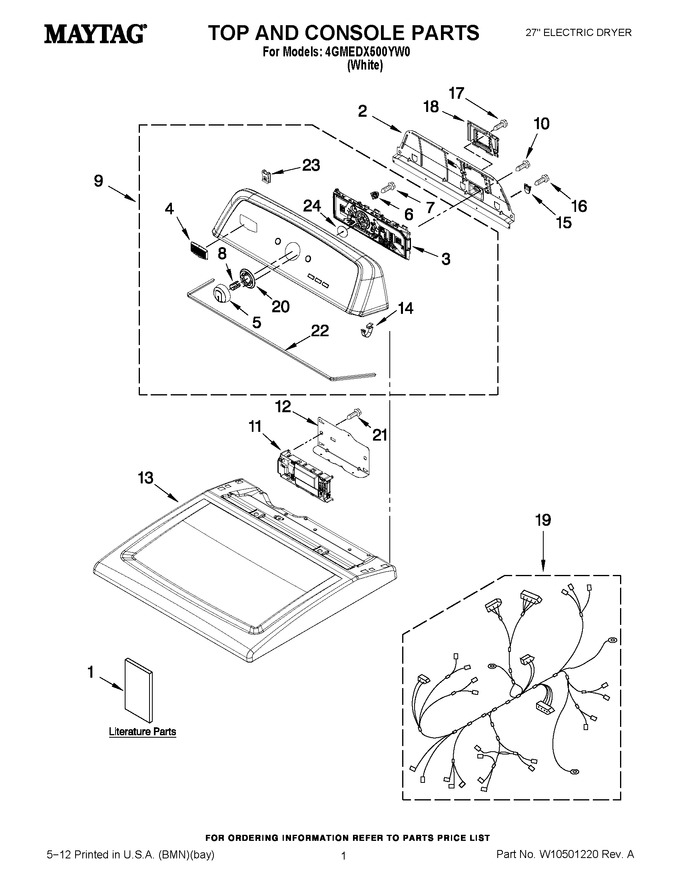

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10417013		Tech Sheet		Appelez-nous	-
1	W10462984		Guide, Use & Care		Appelez-nous	-
1	W10366230		Wiring Diagram		Appelez-nous	-
1	W10461694		Installation, Instruction		Appelez-nous	-
2	W10096969		Panel, Rear Console				$ 197.80
3	WPW10272634		User Interface   (Replaces: W10272634)				$ 313.89
4	W10492808		Badge Assembly   (Replaces: W10323735)				$ 59.82
5	WPW10251381		Knob Assembly   (Replaces: W10251381)				$ 58.63
6	W10274524		Tensioner-fascia		Appelez-nous	-
7	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
8	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
9	WPW10464793		Console Assembly (white)   (Replaces: W10464793)				$ 389.20
10	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
11	WPW10465534		Control, Electronic   (Replaces: W10465534)				$ 261.79
12	W10271580		Bracket, Motor Control		Appelez-nous	-
13	WPW10268730		Top (white)   (Replaces: W10268730)				$ 345.86
14	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 16.35
15	W10279552		Plug, Rear Panel		Appelez-nous	-
16	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
17	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 8.25
18	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 134.77
19	W10339708		Harness, Electric		Appelez-nous	-
20	W10305134		Bezel, Cycle Trim				$ 26.37
21	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
22	W10280079		Seal, Console		Appelez-nous	-
23	W11213336		Nut, U-type   (Replaces: W10298336)				$ 8.13
24	W10323092		Seal, Ui		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
