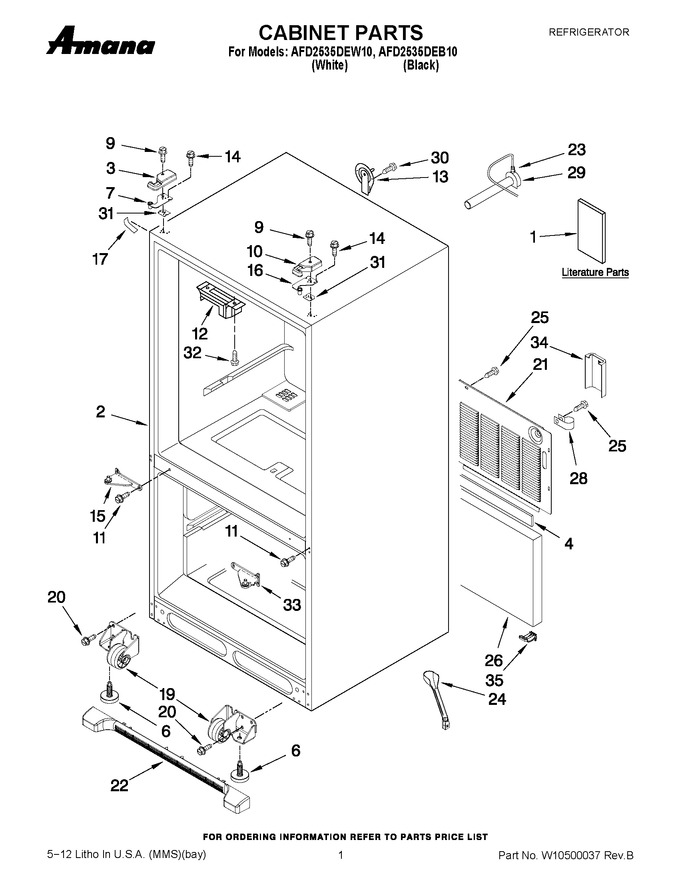

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Icemaker Parts


08 - Freezer Door Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10366212		Use & Care Guide		Appelez-nous	-
1	W10475389		Tech Sheet		Appelez-nous	-
1	W10183263		Energy Guide		Appelez-nous	-
2	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
3	W10177767		Cover, Left Hinge (black)				$ 20.10
3	W10177766		Cover, Left Hinge (white)		Appelez-nous	-
4	B5759655		Gasket				$ 12.41
6	WPW10141622		Foot, Brake   (Replaces: W10141622)			Immediately	$ 7.85
7	WP12566607ED		Hinge, Left Top   (Replaces: 12566605ED)				$ 86.75
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.19
10	12684202W		Cover, Right Hinge (white)		Appelez-nous	-
10	12684202B		Cover, Right Hinge (black)		Appelez-nous	-
11	WP489349		Screw   (Replaces: 12990101)			Immediately	$ 7.88
12	WP67003405		Block, Pivot   (Replaces: 12698403)			Immediately	$ 7.82
13	12726003		Cover, Water Line				$ 18.28
14	WP489349		Screw (3)   (Replaces: 12992403)			Immediately	$ 7.88
15	W10918164		Hinge, Center (lt) (black)   (Replaces: 13000007ED)				$ 86.64
15	W10918113		Hinge, Center (lt) (white)   (Replaces: 13000001WD)				$ 93.26
16	WP12566606ED		Hinge, Right Top   (Replaces: 12566604ED)			Immediately	$ 44.89
17	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 21.09
17	12587703W		Cover, Corner (white)				$ 21.81
19	W11820445		Roller Assembly (right)   (Replaces: W10275849)			Immediately	$ 35.57
19	W11820444		Roller Assembly (left)   (Replaces: W10275850)			Immediately	$ 35.57
20	67006564		Screw (4)   (Replaces: 12991302)			Immediately	$ 7.69
21	WPW10211855		Cover, Unit   (Replaces: W10211855)				$ 198.09
22	WPW10534153		Grille, Toe (black)   (Replaces: W10244561N)				$ 147.21
22	WPW10534154		Grille, Toe (white)   (Replaces: W10244559N)				$ 146.34
23	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.05
24	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
25	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.95
26	12820505		Fiber, Acoustic				$ 71.70
28	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 21.33
29	W11176463		Elbow, Fill Tube   (Replaces: W10137519)			Immediately	$ 114.15
30	WP98165		Screw   (Replaces: 12990504)				$ 8.00
31	12579702		Shim, Top Hinge		Appelez-nous	-
32	WP7101P126-60		Screw, Block   (Replaces: 12990303)			Immediately	$ 7.61
33	W10918164		Hinge, Center (rt) (black)   (Replaces: 13000008ED)				$ 86.64
33	13000002WD		Hinge, Center (rt) (white)				$ 153.32
34	W10208593		Guard-water Valve				$ 14.96
35	12831101		Sweep-water Valve				$ 12.41
