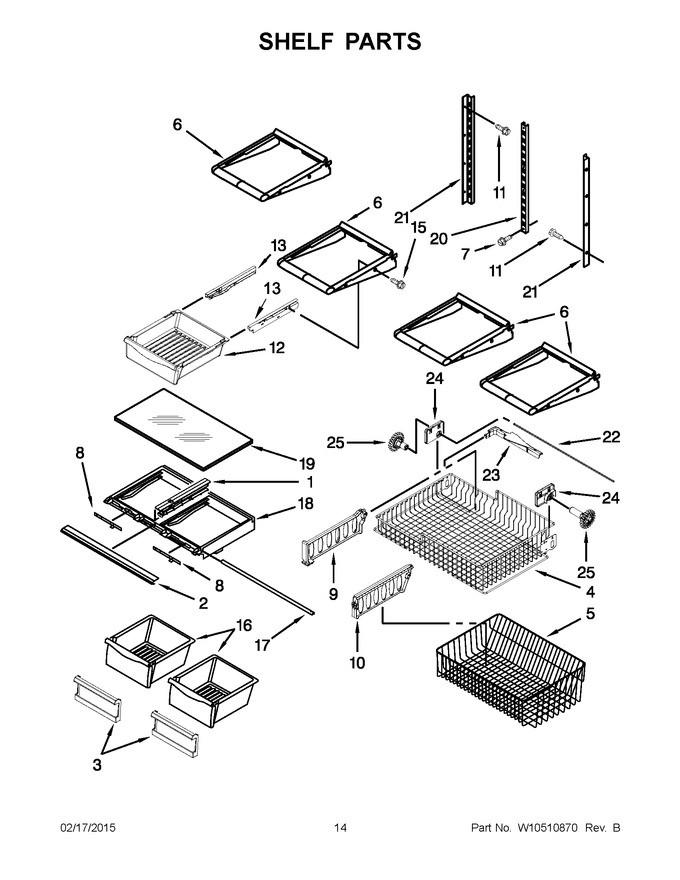

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces: 12530701N) |
|
Immediately | $ 118.46 | ||||
| 2 | W10231339 | Trim, Crisper |
|
$ 63.41 | |||||
| 3 | W10833529 | Front, Crisper (Replaces: 12643602) |
|
$ 75.75 | |||||
| 4 | W10348236 | Basket, Freezer (upper) |
|
$ 97.31 | |||||
| 5 | W10503182 | Basket, Freezer (lower) (Replaces: W10146449) |
|
$ 241.97 | |||||
| 6 | W11402522 | Shelf, Stationary (Replaces: 12463608) |
|
$ 203.51 | |||||
| 7 | W10215666 | Screw |
|
$ 9.53 | |||||
| 8 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 9 | W10241046 | Divider, Basket (upper) |
|
Immediately | $ 29.19 | ||||
| 10 | W10847995 | Divider, Basket (lower) (Replaces: W10146440) |
|
$ 92.48 | |||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 12 | WP67001308 | Pan, Deli (Replaces: 12656504V) |
|
Immediately | $ 138.10 | ||||
| 13 | WP67001054 | Glide, Deli (left Hand) (Replaces: 12656601V) |
|
Immediately | $ 8.82 | ||||
| 15 | W11233072 | Screw (Replaces: 12990302V) |
|
Immediately | $ 14.72 | ||||
| 16 | W10833528 | Pan, Crisper (Replaces: 12531305) |
|
Immediately | $ 139.95 | ||||
| 17 | WP12227302WD | Brace, Crisper Cover (Replaces: 12227302WD) |
|
$ 111.60 | |||||
| 18 | WPW10671240 | Frame, Crisper (Replaces: 12530901SP) |
|
Immediately | $ 138.10 | ||||
| 19 | WP67006877 | Glass, Crisper Cover (Replaces: 12204823N) |
|
Immediately | $ 209.75 | ||||
| 20 | W10273463 | Ladder, Center |
|
$ 29.61 | |||||
| 21 | W10251970 | Ladder, Side |
|
$ 29.89 | |||||
| 22 | 12812906WD | Shaft, Rack |
|
$ 42.54 | |||||
| 23 | W10149389 | Lift, Bail Arm (Replaces: W10149389N) |
|
$ 92.66 | |||||
| 24 | W10348259 | Mount, Gear (left Hand) |
|
$ 89.87 | |||||
| 25 | WPW10474716 | Gear (left Hand) (Replaces: W10474716) |
|
Immediately | $ 32.42 | ||||
| 13A | WP67001053 | Glide, Deli (right Hand) (Replaces: 12656602V) |
|
Immediately | $ 9.24 | ||||
| 24A | W10348260 | Mount, Gear (right Hand) |
|
$ 89.90 | |||||
| 25A | WPW10474715 | Gear (right Hand) (Replaces: W10474715) |
|
Immediately | $ 32.76 |
