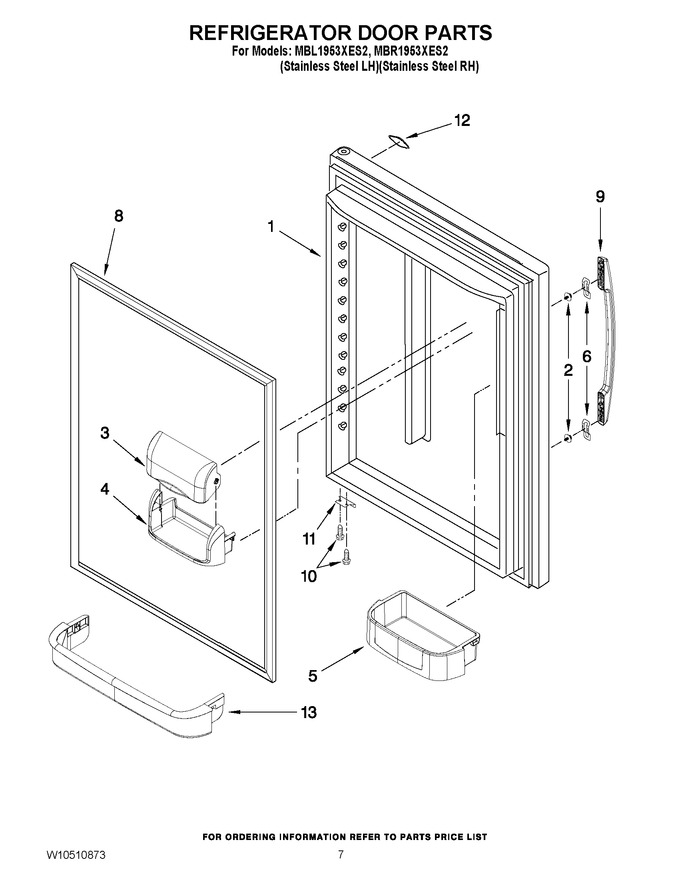

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107538SQ | Door, Refrigerator (stainless-rh) (Replaces: 13107538S) |
|
$ 781.60 | |||||
| 1 | 13107540SQ | Door, Refrigerator (stainless-lh) (Replaces: 13107540S) |
|
$ 1,037.98 | |||||
| 2 | WPW10288153 | Screw, Handle (Replaces: W10288153) |
|
Immediately | $ 9.65 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WP67004041 | Bucket-small (2) (Replaces: 12801901V) |
|
$ 89.01 | |||||
| 5 | 67004040 | Bucket, Medium (2) (Replaces: 12801902V) |
|
$ 95.99 | |||||
| 6 | WP2255411 | Clip, Handle (Replaces: 2255411) |
|
$ 36.55 | |||||
| 8 | WPW10436245 | Gasket, Door (Replaces: W10436245) |
|
$ 362.36 | |||||
| 9 | W10252288A | Handle, Door (Replaces: W10252288N) |
|
$ 129.86 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 11 | W11708403 | Stop, Door (Replaces: 10447112) |
|
Immediately | $ 14.75 | ||||
| 12 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 70.50 | ||||
| 13 | 67001139 | Retainer, Ref Door (Replaces: 12557904) |
|
Immediately | $ 104.79 |
